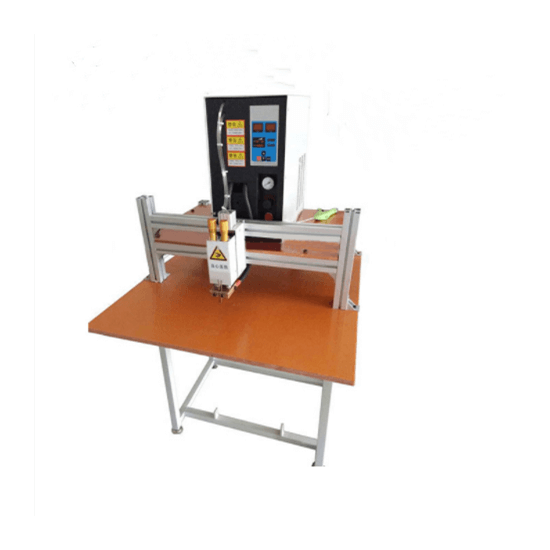

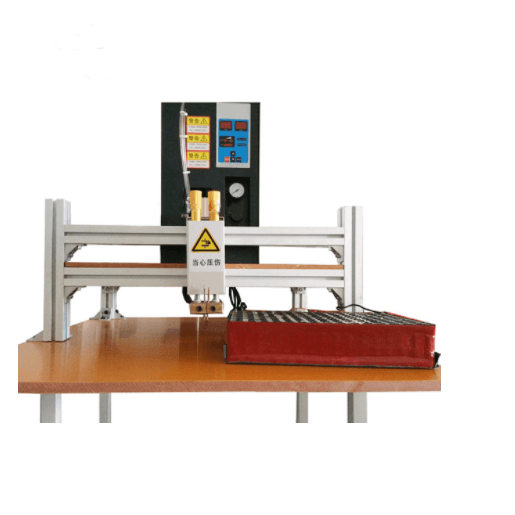

High Precision Microcomputer Double Pulse Spot Welder Battery Welding Machine for 18650 26650 32650 Cylindrical Battery

ItemNo :
LITH-HT-030
MOQ :
1
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

High Precision Microcomputer Double Pulse Spot Welder Battery Welding Machine for 18650 26650 32650 Cylindrical Battery

INTRODUCTION:
1. Microcomputer double pulse is mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
2. This kind battery spot welder parameters and the performance of precision spot welder, Pedal Type welding machine.
3. HT System battery spot welder machine has different models according it’s welding ability.

SPECIFICATION:

Modle	Microcomputer double pulse spot welder
Output power	18KVA
The output instantaneous current	2800A
Discharge time	The longest 20ms
Welding times	About 280BPM
Welding control	supplement type
Pre-welding pulses	0-3 wave (max)
Welding pulses	0-3 wave(max)
Welding energy regulation	0-999
Welding compensation rate	+ 40v, -50v
Two pressing time	0 seconds *10
Digital display	7 digital tube *3
Number ratio display	9 levels of display
The main control computer	8BIT micro electronic control
Digital memory	E.EPROM
precision control	Supplement voltage anti-jamming
Pressure time	0.01-0.99 seconds
First pulse number	0-3
First pulse energy regulation	0-999
Second pulse number	0-3
Intermediate cooling time	0.01-0.99 seconds
Secnd pulse the quantity modulation	0-999
After pressure time	0.01-0.99 seconds
welding process	30mm welding height freely adjustable
whole weight	48KG

Spot Welding Machinie
Type	Product Name	Features	Picture	Link
Manual	Pneumatic Spot Welding Machine	Welding Thickness:0.03 -0.25mm Air Pressure Range:0.1 - 0.7 Mpa		https://www.lithmachine.com/desk-top-capacitive-discharge-spot-welder-for-battery-tab-and-cylindrical-battery-welding_p366.html
	AC Plus Pneumatic Spot Welding Machine	Welding Thickness:0.03~0.2mm		https://www.lithmachine.com/ac-plus-pneumatic-spot-welding-machine-welder-for-cylindrical-battery-welding_p362.html
	5000A/8000A Pneumatic Inverter DC Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm Maximum Output Short Circuit Current:5000A or 8000A		https://www.lithmachine.com/inverter-resistance-welder-18650-power-battery-spot-welder-battery-spot-welding-machine_p442.html
	DC Output Spot Welding Machine	Maximum thickness of parallel welding:0.03mm~0.5mm		https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html
Automatic	Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)	Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.lithmachine.com/automatic-single-side-battery-spot-welding-machine-welder-for-18650-cylindrical-battery-pack_p363.html
	Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)	The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour		https://www.lithmachine.com/inverter-dc-single-side-automatic-spot-welding-machine-for-cylindrical-battery-pack-assembly_p402.html
	Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)	Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h		https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html

Spot Welding Machine

Manual Spot Welder

Related Machine

Lithium Battery Sorting

Sticking Barley Paper

Spot Welding PVC Heat Shrink Wrapping
Semi-finished Cell Testing

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
