Customizable Size Nickel Copper Foam Metal Foam Sheet

Customizable Size Nickel Copper Foam Metal Foam Sheet

  • Product Details

Customizable Size Nickel Copper Foam Metal Foam Sheet



Quantity Discount is Available: >5pcs, 15% OFF
Quantity Discount is Available: >10pcs, 25% OFF and Free Shipping
For more product information and ordering detail, please contact: Louis@lithmachine.com




DESCRIPTION:



Nickel Copper Foam has excellent thermal conductivity and can be widely used for heat conduction and heat dissipation of motors, electrical appliances and electronic components.

Nickel Copper Foam has excellent electrical conductivity and never rusts.

Nickel Copper Foam is an excellent medical filter material and water purification filter material due to its structural characteristics and its non-harmful properties to human body.


Specifications:


Type

Open Cell

Purity

> 97%

Form

Sheet or Roll, depending on size & thickness

Cell Size (PPI)

5-150PPI, as per request

Thickness

Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request

Size & Shape

can be made in different shape as per request

Porosity

50%-98%

Open Cell Rate

≥98%

Volume Density

0.1-0.8g/cm3, as per request


Reference dimensions:


0.5mm*200mm*300mm

0.7mm*200mm*300mm

0.8mm*200mm*300mm

1mm*200mm*300mm

1.5mm*200mm*300mm

1.6mm*200mm*300mm

2mm*200mm*300mm

2.5 to 3mm*200mm*300mm

The size can be customized

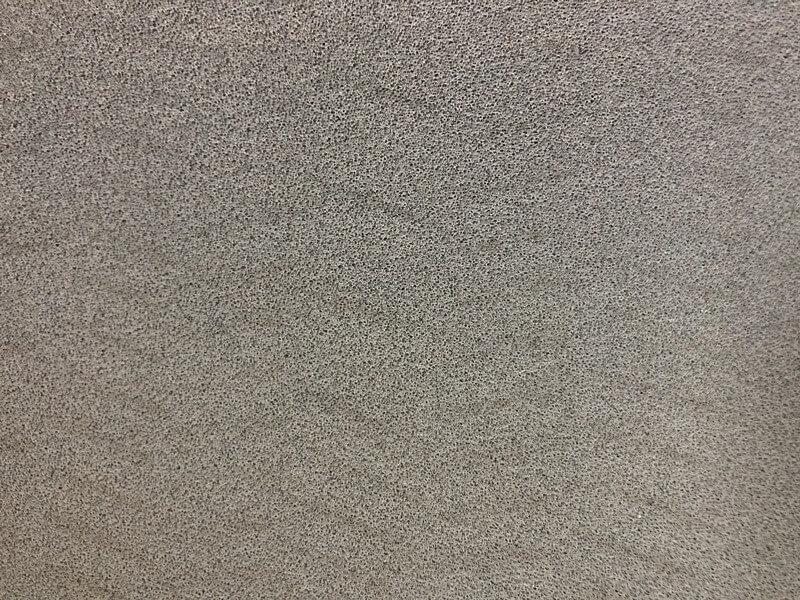

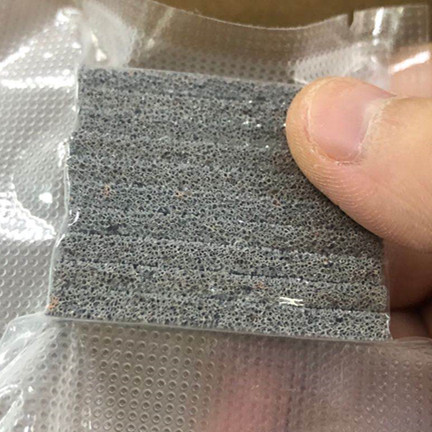

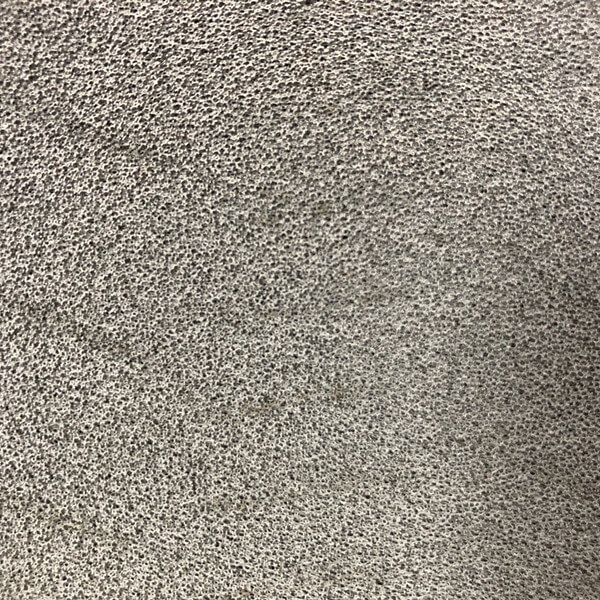

Nickel copper foam


Nickel copper foam


Ni-cu foam



CE Certificate




Cooperative Brand



PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

Warehouse and transportation
