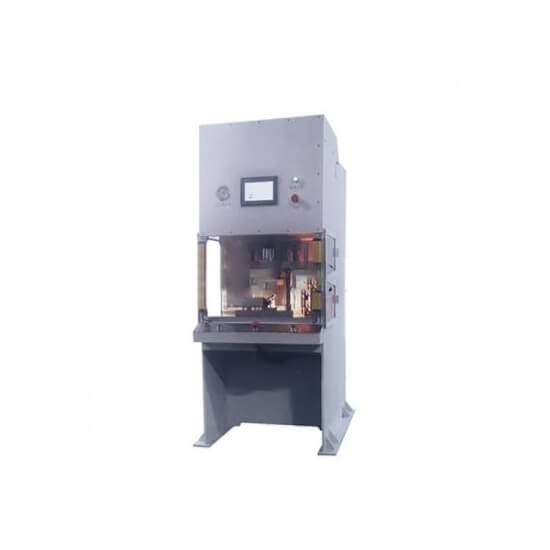

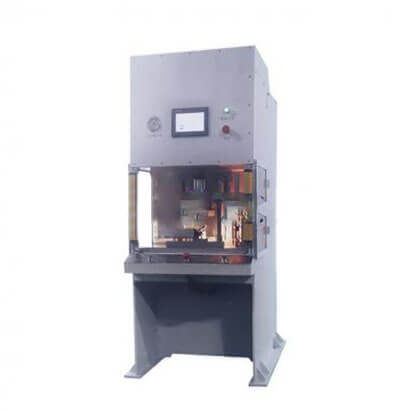

Supercapacitor Tab Eyelet Machine
Functional overview
The device is suitable for the punching and trimming operation of quadrate supercapacitor and lithium ion power battery tab.
Functional characteristics
1.Adopt hydraulic system as the punching and trimming power, with big impact, adjustab1e speed and high efficiency.
2.Mould aopts high-strength and high-wear-resistance die steel with good mechanical property.
3.Equipped with high-precision digital sensor to detect the thickness pole ear after punching and trimming.
4.Equipped with the imported two-dimension bar code scanner. Data can be stored and derived,for the convenience of quality control and traceability on product.
5.Equipped with security door and safety protection light grid, with safe and reliable device operation.
6.Adopt the imported PLC. Touch screen displays operation.
Technical parameters
|
Capacity |
0.39~0.6ea/s |
|
Punching diameter |
φ6.5mm±0.05mm(customized) |
|
Unipolar ear piercing |
2pcs |
|
Punching and shearing localization accuracy |
±0.2mm |
|
Hole punching and shearing burrs |
≤13pm |
|
Hole punching and shearing thickness |
3~5mm |
|
Power source |
AC380V(±10%) 50Hz |
|
Power |
6kW |
|
Overall dimensions (LxWxH) |
830x860x2970mm |
|
Weight |
800kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
