Stainless Steel Two-Electrode Split Test Cell for Coin Cell R&D Stainless Steel Two-Electrode Split Test Cell for Coin Cell R&D Stainless Steel Two-Electrode Split Test Cell for Coin Cell R&D

Stainless Steel Two-Electrode Split Test Cell for Coin Cell R&D

  • Product Details

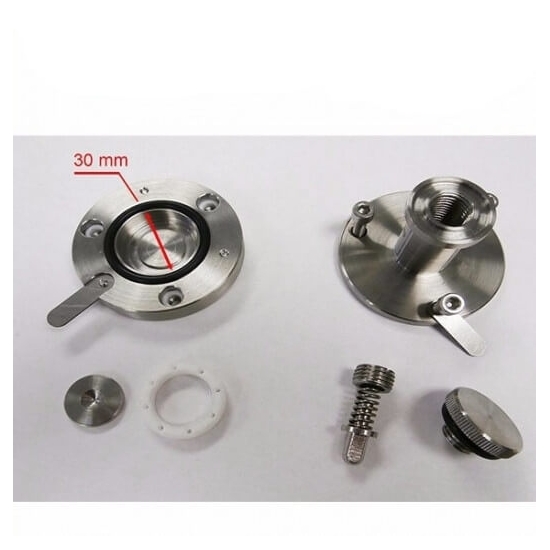

Stainless Steel Two-Electrode Split Test Cell for Coin Cell R&D


1. EQ-STC split-able test cell is designed for R&D of rechargeable battery material.

2. It can accept various sizes of (10, 12, 15, 19, 20, and 24mm diameter) electrodes and separators and test the electrodes easily and quickly.


SPECIFICATIONS:

Structure

Full stainless steel SS304

Max. Cell Thickness

6mm  (cathode+separator+anode)



Features

· A 6mm height spacer inside the test cell to press down on the electrode and prevent the electrode from curling

· Sealed by electrolyte corrosive-proof PTFE O-rings  (click picture below left to order spare )

· Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC. (click pic below right to order spare )

· Easy to separate after testing

· Small enough to be put in and taken out from a glove box

Max. Working Temperature

· 200 ºC

Optional

· Please select the insert size in the option bar. 5, 10, 12, 15, 19, 20, and 24 mm diameter inserts are available.

· Anti-corrosive Au coating on the cell internal and inserts is an option.





                  Split Test Cell

   Split Test Cell



Coin Cell Process:

Materilas → Powder Processing  →Powder Grinding Mill → Vacuum Mixing  → Electrode Coating → Roll Press  → Vacuum Drying  → Disc Cutter → Electrolyte Injection  → Crimping Machine  → Battery Analyzer





For the coin cell Assembly, we also recommend you the following items:









PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
