LITH-XT-200CA Film coating machine is lab Automatic Film Coater with glass bed as coating plate. It adopts OSP precision wire rod to with a larger range of coating range. This lab coating machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.
This Wire rod coating machine adopts precision extrusion type coating measuring rods coated film (the thinnest film coating thickness up to 1.5 um). It also can be used for Paper printing, film, adhesive tape production.
This model is without heating function, Heating lid is available at extra cost for drying . please select model LITH-TMH if we need hot function.
Specifications
Model
Film Coating Machine TMAX-XT-200CA
Working Voltage
110V AC or 208 - 240V AC 50/60Hz Single Phase
Power
200W
Traverse Speed
0 - 200 mm/sec variable
Max. Coating
Dimensions
430*300mm (L*W)
Coating base size
570*340mm (L*W)
Platform
Glass bed for coating
Coating thickness
Coating film by precision wire bar
(Thinnest coating film thickness is 1.5um)
Coating wire
bar size
Diameter : 10mm, Length: 400mm,Effective coating width:300mm
Product Dimensions
570mm(L) *340mm(W) * 100mm(H)
Net Weight
20kg
Warranty
One year limited warranty with lifetime support
Application Notes

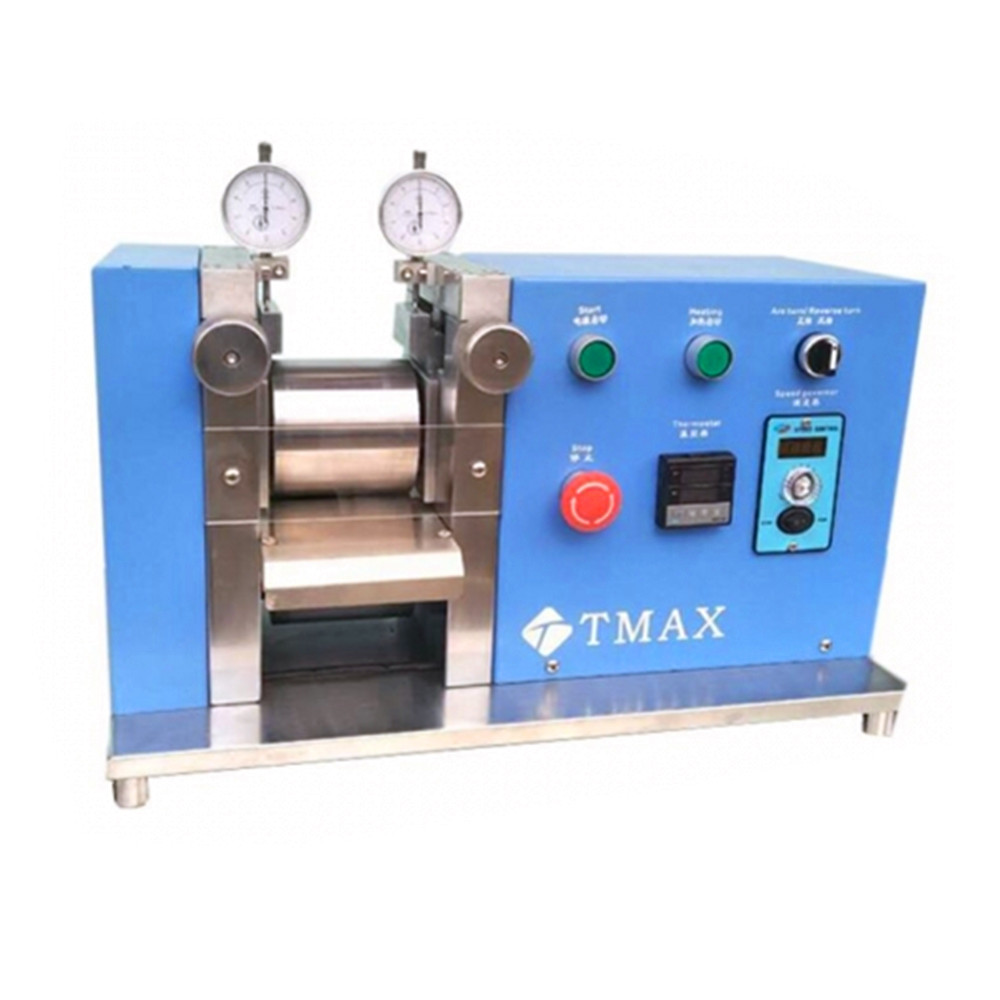

Rolling is absolutely necessary to ensure good density and adhesion
of electrode materials to the current collector substrate after coating.
Please select a rolling press from here.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
