Slurry Feeding Equipment With Turnover Bucket And Iron Removal Filter For Prismatic Cell Electrode Coating

Slurry Feeding Equipment With Turnover Bucket And Iron Removal Filter For Prismatic Cell Electrode Coating

  • ItemNo :

    LITH-100XXH-ITTB
  • MOQ :

    1
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

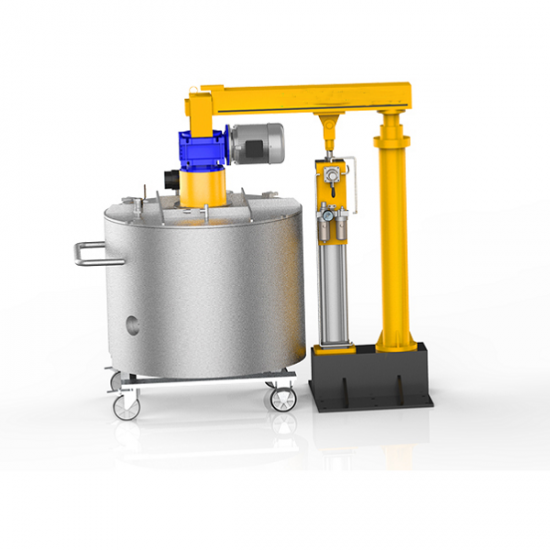

Slurry Feeding Equipment With Turnover Bucket And Iron Removal Filter For Prismatic Cell Electrode Coating



I. Equipment Introduction

This equipment is mainly used for lithium-ion battery coating machine feeding special equipment, from the turnover bucket + iron removal filter 2 parts .


II. Equipment standard composition and key configuration table

1.Swing barrel and lifting part

1. Feeding bucket (common with the main machine).

Design volume / effective volume

150L/ 100L

Material contact with the inner liner of the mixing drum: 304 stainless steel .

Mixing drum  specification mm

Approx . Ф650*450

1), discharge valveG2" (DN50) ;

2), barrel body with push-pull handlebarrel bottom with casters

(2 directional + 2 universal) .

3), cooling/insulationwith bottom/side wall cooling outer jacketcooling water inlet/outlet with water pipe live connector .

2. Upper cover.

Top cover     specification

mm

Matching with the corresponding mixing drum .

Material in contact with the material : 304 stainless steel .

1With 2 small windowsa spotlightDN25 filling pipe (with 304 ball valve), vacuum pumping/releasing interfacevacuum pressure gauge and other spare receiver

2) The upper lid is fixed and locked with the mixing drum using quick locking clips .


3. Mixing components and basic configuration parameters.

Stirring

shaft/stirring

paddle speed

Approximately 2rpm .

Stirring shaft / stirring paddle material :

304 stainless steel .

Stirring motor

power

1. 1kw/4P .

Speed reducer             (matched with motor)

nmrv-090-60-fa-f2-y90s- 1. 1kw

Stirring paddle form

Combined frame type mixing paddle .

4. Mixing

principle.

The combined frame stirring paddle does downward pressure type self rotation to ensure that the material is not deposited .

5. Vacuum guarantee system: 5 skeleton oil seals are installed togetherand the vacuum source is provided by the user .

1) The vacuum degree reaches ≤ -0 .098Mpakeep it not lower than -0 .08Mpa for 24 hours .

2Sealing method : Astatic seal using "Oseal ; Bskeleton oil seal .

6 Distribution box: The mixing switchspotlight switchoperation emergency stop   and other functional operations in the operation of the equipment are carried out on the distribution cabinet .

7. Lifting device: φ125x800 lifting cylinder 1, with 1 safety pin


2.Iron removal and filtration part

No.

Name

Material

Remarks

1

Shaft Seals

Fluorine rubber

Abrasion and corrosion resistant

2

Scraper

Polyester plastic

(Imported from UK) Abrasion and corrosion resistant

3

Scraper spring

SUS304



4

Seals

Silicone



5

Shaft assembly

Ternary ethylene propylene

+SUS304







6





Cartridge





SUS316

Accuracy deviation value:    ± 0.03mm (max . ± 0.05mm),

diameter deviation value:  ± 0.3mm 80 mesh to 200 mesh available

( 120 mesh standard)

7

Housing/upper and lower cover/scraper holder

SUS304



8

DC Motor



24V/60W

9

Diaphragm Pumps

Aluminum alloy QBY-25




3.Liquid level sensing system

Working principle:

The liquid level sensor transmits the signal to the solenoid valve according to the change of material level position, and controls the feeding amount of pneumatic

diaphragm pump through the solenoid valve, so as to realize the function of automatic feeding .

No.

Equipment name

Equipment Model

Quantity

Remarks

1

Liquid level sensor

Homemade

1



2

Solenoid Valve

Taiwan

1



3

Intermediate Relay

China

1



4

Intermediate relay base

China

1



5

Rotary Switch

China

1




Slurry Feeding Equipment

Slurry Feeding Equipment





PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
