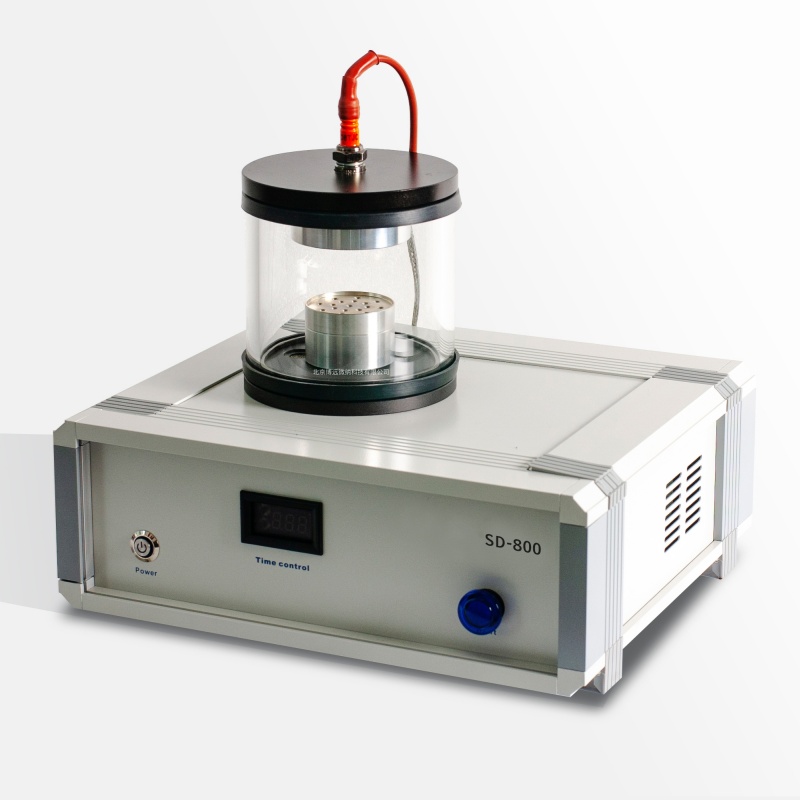

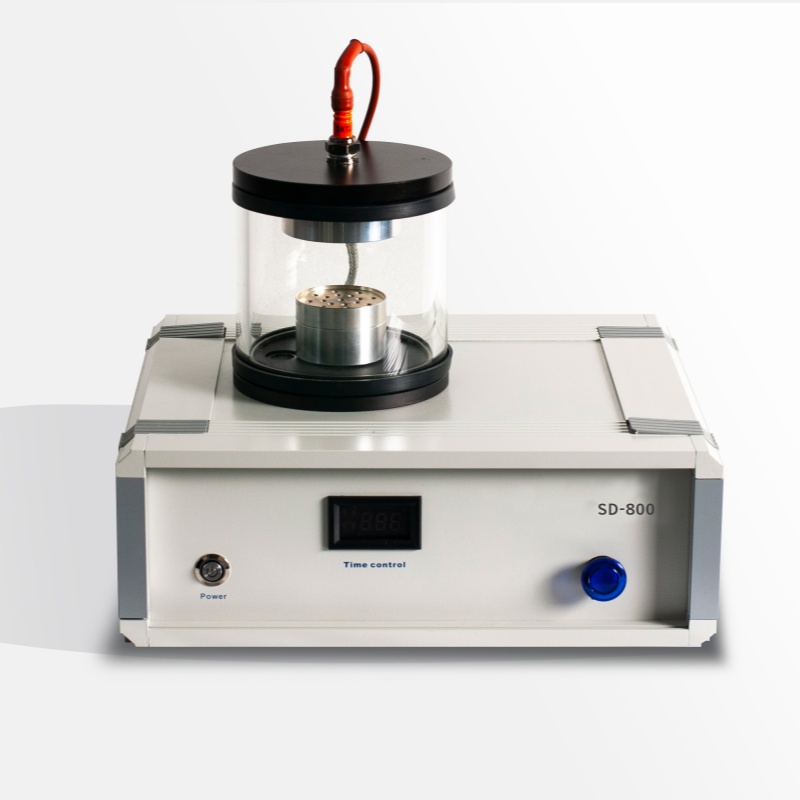

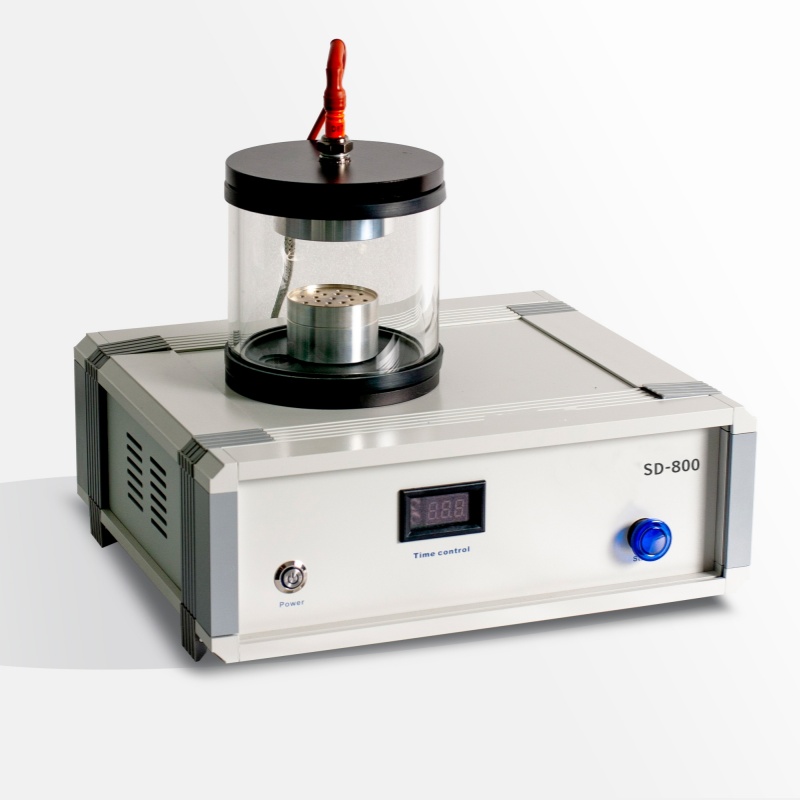

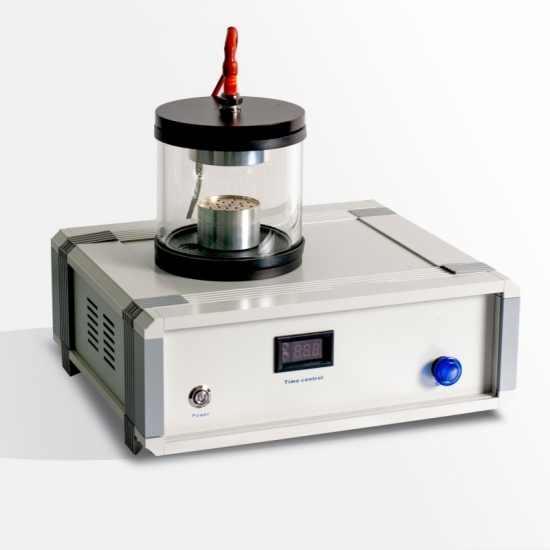

Glovebox-Compatible SEM Sample Coater for Conductive Coatings
1. Key Features & Design Highlights
Ultra-Compact Design
· Chamber volume reduced by 67% (φ115×100 mm) vs. conventional systems
· 0.02 m³ footprint (307×260×260 mm) and 40 kg weight for easy benchtop placement
Rapid Process Ready
· Achieves working vacuum in <2 minutes (vs. industry-standard 5–10 mins)
· Oil-lubricated rotary pump with dual-frequency support (50/60Hz)
Precision Sputtering
· φ50×0.1 mm ultra-thin targets (Au/Ag/Pt) for microscale coating
· Scratch-resistant quartz viewport for real-time monitoring
Energy Efficient
· <1500W power consumption (30% lower than comparable systems)
· Air-cooled operation eliminates water chiller requirements
|
Parameter |
Specification |
|

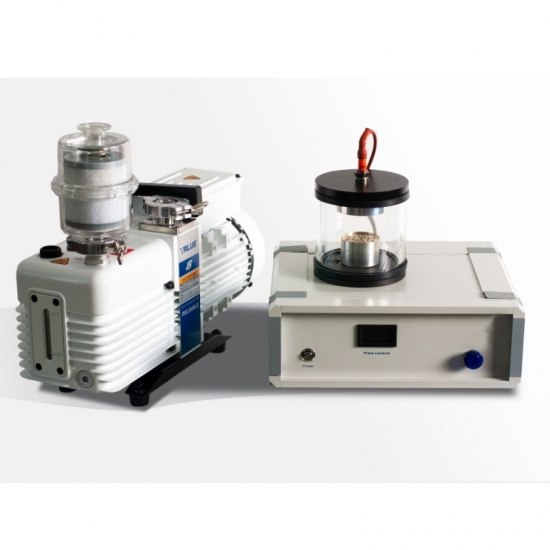

Vacuum Pump |
Oil-required rotary pump |
|
Pumping Speed |
50Hz: 8 m³/h (2.2 L/s) • 60Hz: 9.6 m³/h (2.6 L/s) |
|
Base Pressure |
Achievable in <2 mins |
|
Target Materials |
Au (std.), Ag, Pt (φ50×0.1 mm) |
|
Max Substrate Size |
Ø50 mm |
|
Power Supply |
110V/60Hz or 220V/50Hz auto-switching |
|
Cooling Method |
Passive air cooling |
|
Warranty |
1-year limited + lifetime support |

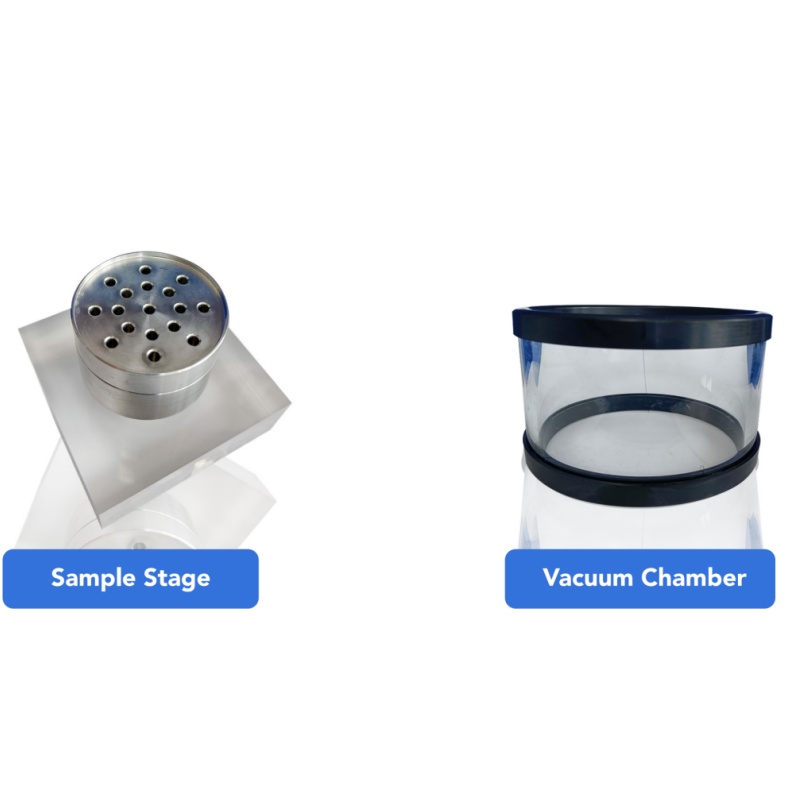

· Chamber Material: Stainless steel with quartz viewport
· Control Interface: Timer-based automation (manual override)
· Safety: Overcurrent protection, grounding detection
✔ SEM Sample Preparation
· Conductive coatings for non-metallic samples (e.g., polymers, biological tissues)
· Charge dissipation layers for high-resolution imaging
✔ Material Science Research
· Micro/nano-scale metal film deposition
· Prototype coating for flexible electronics
✔ Field & Educational Use
· Portable solution for shared lab spaces
· Low-maintenance operation (no water cooling)
|
Aspect |
SD-800 |
Traditional Coaters |
|
Footprint |
0.02 m³ |
≥0.05 m³ |
|
Setup Time |
<5 mins |
15–30 mins |
|
Target Thickness |
0.1 mm |
0.3–1 mm |
|
Cooling |
Air-cooled |
Water-chilled |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
