Planetary Ball Mill Machine

Planetary Ball Mill Machine

  • ItemNo :

    LITH-XQM
  • MOQ :

    1
  • Warranty:

    Two years limited warranty with lifetime technical
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Planetary Ball Mill Machine

Features

Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.


Specifications

Model

Capacity

Specification of milling tank

XQM-0.2

0.2L

50ml

XQM-0.4

0.4L

50ml-100ml

XQM-1

1L

50ml-250ml

XQM-2

2L

50ml-500ml

XQM-4

4L

250ml-1L

XQM-6

6L

lL-1.5L

XQM-8

8L

1L-2L

XQM-10

10L

1L-2.5L

XQM-12

12L

1L-3L

XQM-20

20L

2L-5L

XQM-40

40L

5L-10L

XQM-60

60L

10L-15L

XQM-100

100L

20L-25L


Model

Planetary Ball Mill Machine

Grinding tank volume (L)

According to requirements



Grinding tank material

Maximum loading per tank

Material and grinding medium does not exceed two-thirds of the volume

Feeding material size

Soil material ≤ 10 mm, other materials ≤ 3 mm

Discharge material size

Min 0.1um

Rotating speed

Revolution 335r / min,

Rotation 670r / min

Speed ratio

 (revolution: rotation)

1:2

Speed mode

Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse

Transfer method

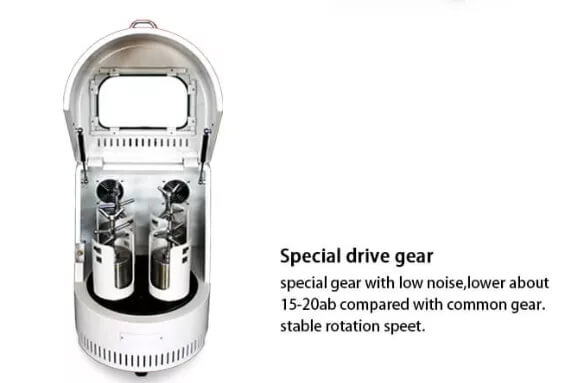

Gear drive

Working Voltage

220V

Way of working

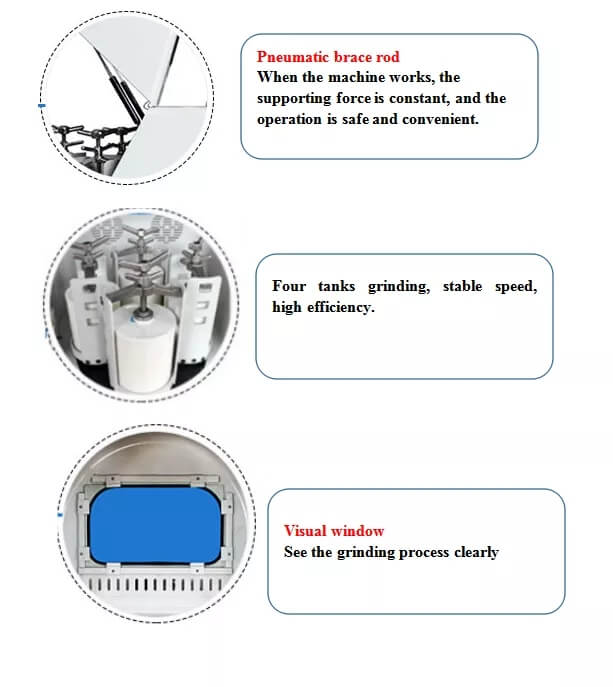

Two or four tanks work at the same time

Maximum continuous operating time

72hours

Machine Size

750*470*564mm

Programmable control (electronic monitoring)

Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.


Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

 Selection

Planetary Ball Mill









0.2L-200L total volume optional





















Pictures

 Link



 0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing







              Rolling Jar Mill



0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing





Vertical Planetary Ball Mill(Square )



0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing



Horizontal Planetary Ball Mill



0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing

Air-cooling Function Planetary Ball Mill







0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing





          Ball Mill for Production



 0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing





Full Directional Rotation Lab Scale Micron Fine Milling Powder Grinding Ball Mill



 Product Images

0.2-200L Lab Compact Planetary Ball Mill Mixing/ Grinding Machine with Jars and Balls for Slurry and Powder Mixing






Related Machine

 Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making

 Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making

 Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making

 Semi Automatic Battery Winding Machine for Cylindrical Battery or Pouch Cell Electrode Making

Electrode Slitting

 Welding Power:

80-6500W optional

Lab cylindrical cell grooving machine

 Manual Sealing or Pneumatic Sealing Machine

8 Channel Battery Tester



Slitting Machine

Ultrasonic Spot Welding Machine

Grooving Machine

Sealing Machine

Battery Tester






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
