Louis@lithmachine.comManual Battery Electrode Winding Machine For Pouch Cell Research
|
Model |
Electrode Winding Machine |
|
Working Voltage |
AC110V/220V, 50/60HZ |
|
Power |
50W |
|
Warranty |
Two Year limited warranty with lifetime support |
|
Winding Speed |
0 - 170 RPM Adjustable |
|

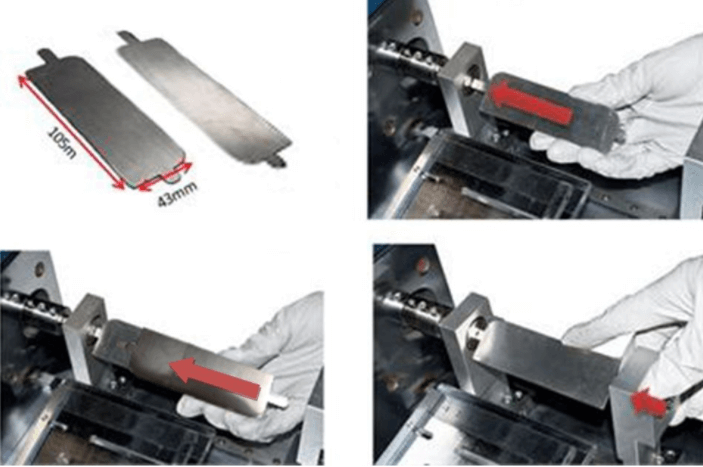

Winding blade |
The winding width depends on the width of the winding blade Customized square winding blade according to battery model |
|
Winding Mode |
Switchable between clockwise and counterclockwise |
|
Output |
70-100EA/h, according to battery size and maunal |
|
Product Dimensions (L*W*H) |
380*320*300mm |
|
Net weight |
About 30kg |
|
Application Notes |
This machine can be used for prismatic battery with square winding shaft, and you can also choose the round winding shaft for cylinder cell core winding, We will supply with the suitable winding accessories according to your battery model |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to production season and order quantity.
