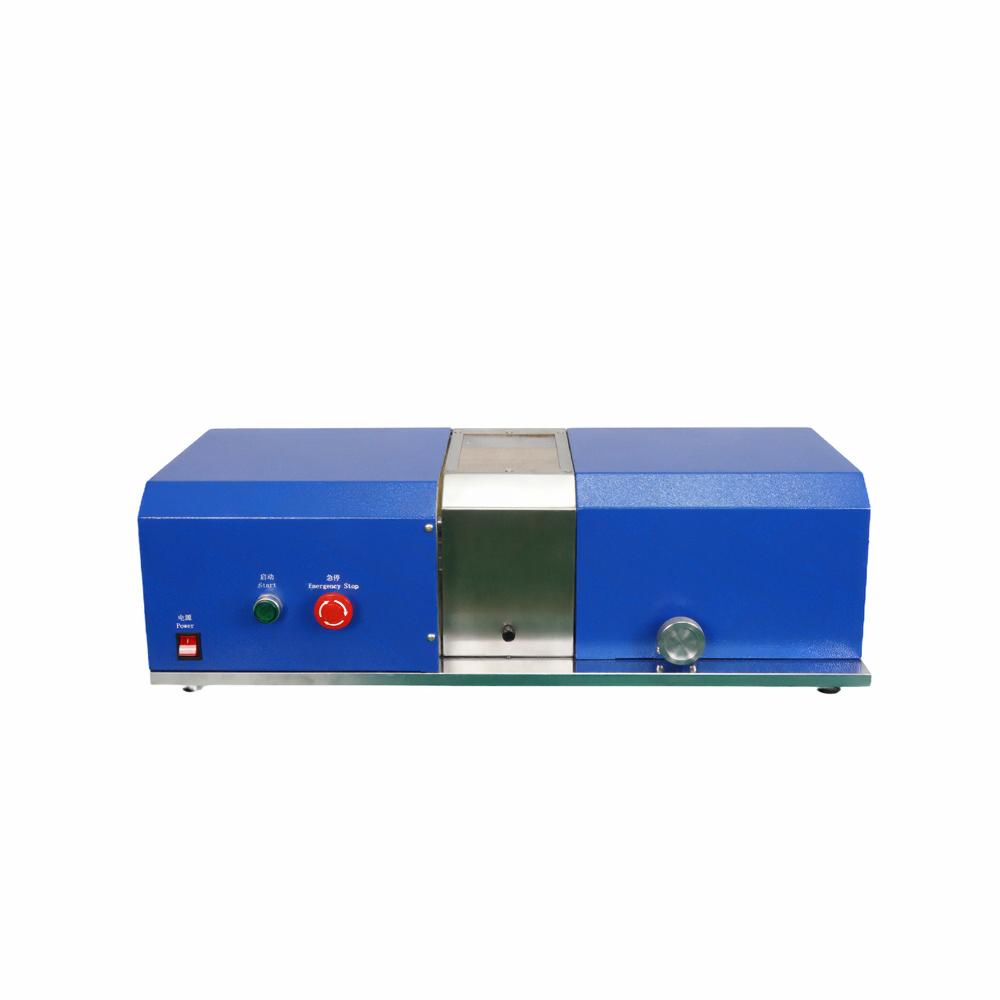

Laboratory Disassembling Machine for Cylindrical Battery
Application
The LITH-CK650 is a cylindrical battery disassembly machine specially designed for laboratory use, particularly for removing the outer shell of 18650 and 26650 battery samples after sealing, to facilitate cell core extraction and material research. It supports multiple cylindrical battery formats through interchangeable dies.
Key Features
· Compatible with 18-series and 26-series cylindrical batteries, including 18650 and 26650 cells.
· Compact design, easily passes through glove box transfer chambers with a diameter ≥230mm.
· High disassembly precision, ensuring the battery core remains undamaged during shell removal.
· User-friendly, safe, and aesthetically designed, ideal for lab environments.
|
Parameter |
Specification |
|
Standard Die |
18650 die set (optional: 26650 die set) |
|
Cutting Blade Speed |
1000 rpm |
|
Die Rotation Speed |
1000 rpm |
|
Micrometer Scale Accuracy |
0.05 mm |
|
Power Supply |
AC220V |
|
Power Consumption |
150W |
|
Machine Dimensions |
450mm × 330mm × 240mm |
|
Machine Weight |
22kg |
Power Processing→Power Grinding→Vacuum Mixing→Electrode Coating→Roll Press→Sheet Cutting→Vacuum Drying→Ultrasonic Welding→Electrode Winding→Spot Welding→Grooving→Glove Box→Electrolyte Injection→Electrode Diffusion→Hydraulic Sealing→Battery Analyzer
Related Machine
Electrode Slitting
Welding Power:
80-6500W optional
Lab cylindrical cell grooving machine
Manual Sealing or Pneumatic Sealing Machine
8 Channel Battery Tester
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
