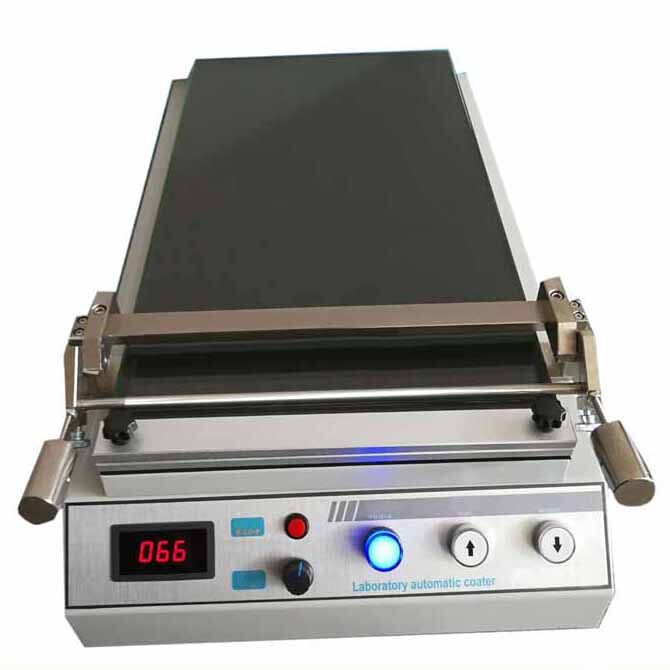

Lab Automatic Mini Tablet Film Coating Coater Machine For Battery Electrode Coating

Lab Automatic Mini Tablet Film Coating Coater Machine For Battery Electrode Coating

  • ItemNo :

    LITH-YR-9
  • MOQ :

    1
  • Warranty:

    2years
  • Delivery Time:

    30days
  • Email :

    [email protected]
  • Product Details

Lab Automatic Mini Tablet Film Coating Coater Machine For Battery Electrode Coating

Features

LITH-YR-9 Film coating machine is lab Automatic Film Coater with glass bed as coating plate. It adopts OSP precision wire rod to with a larger range of coating range. This lab coating machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.



This Wire rod coating machine adopts precision extrusion type coating measuring rods coated film (the thinnest film coating thickness up to 1.5 um). It also can be used for Paper printing, film, adhesive tape production.

This model is without heating function, Heating lid is available at extra cost for drying . please select model TMAX-TMH if we need hot function.

Specifications

Model

Film Coating Machine TMAX-XT-200CA

Working Voltage

110V AC or 208 - 240V AC 50/60Hz Single Phase

Power

200W

Traverse Speed

0 - 200 mm/sec variable

Max. Coating Dimensions

430*300mm (L*W)

Coating base size

570*340mm (L*W)

Platform

Glass bed for coating

Coating thickness

Coating film by precision wire bar(Thinnest coating film thickness up to 1.5um)

Coating wire bar size

Diameter : 10mm, Length: 400mm,Effective coating width:300mm

Product Dimensions

570mm(L) *340mm(W) * 100mm(H)

Net Weight

20kg

Warranty

One year limited warranty with lifetime support

Application Notes

Rolling is absolutely necessary to ensure good density and adhesion of electrode materials

to the current collector substrate after coating. Please select a rolling press from here.

You may need a vacuum oven to dry the films after coating

You may need a vacuum mixer to remove air bubbles inside the slurry and to make

all coatings uniform

You may need a Slurry Viscosity Tester to make coatings consistent











PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
