Lab Automatic Film Applicator Coater For Lithium ion Battery Electrode Coating

Lab Automatic Film Applicator Coater For Lithium ion Battery Electrode Coating

  • ItemNo :

    LITH-DG
  • MOQ :

    1
  • Net Weight:

  • Shipping Dimension:

  • Compliance:

  • Warranty:

    2years
  • Payment:

  • Delivery Time:

  • Dimension(L*W*H):

  • Email :

    [email protected]
  • Product Details

Lab Automatic Film Applicator Coater For Lithium ion Battery Electrode Coating

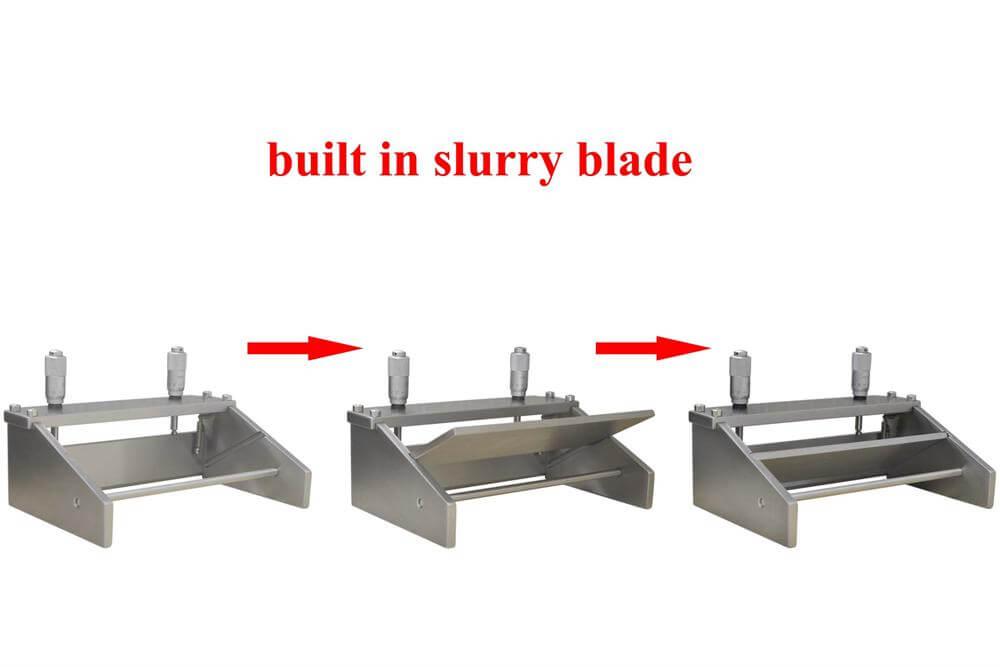

It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when making thin coatings. One 150 mm width adjustable micrometer applicator (doctorblade) and an oilless vacuum pump are included for immediate use. Heating cover with digital temperature controller can dry films after coating up to 200°C with a temperature accuracy of +/-1°C. This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating.



TEM

Data

Model

LITH-DG

Working Voltage

220V ±10%  50Hz

Feed speed

0 ~ 100,the speed can be adjusted

Stroke Length

10 - 250 mm adjustable

Vacuum plate

With vacuum aluminum plate

Scraper range

0.02~0.5mm adjustable

Vacuum Pump

Yes

Max. Heating Temp.

200°C

Product Dimensions

500mm(L)×310mm(W)×330mm(H)

Heating drying system

At room temperature to 200 °C, temperature display controller and accuracy + / - 1 °C

Net Weight

50 kg (135 lbs)

Warranty

One year warranty and lifetime maintenance

                 Electrode Coater

                    Electrode Coater

                       Electrode Coater

                    Electrode Coater










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
