High Conductivity Graphene Foam Sheet for Lab Research

High Conductivity Graphene Foam Sheet for Lab Research

  • Product Details

High Conductivity Graphene Foam Sheet for Lab Research


Quantity Discount is Available: >5pcs, 15% OFF
Quantity Discount is Available: >10pcs, 25% OFF and Free Shipping
For more product information and ordering detail, please contact: Louis@lithmachine.com


The 3D Graphene Foam is made via chemical vapor deposition (CVD) processing. In course of CVD fabrication of graphene hydrogen and methane gases are introduced into a furnace that heats to 1000° Celsius. In the furnace is a nickel or copper film which captures a mono or multi-layer or graphene as the furnace is heated and the methane decomposes. To create CVD Graphene Foam, instead of using a thin sheet of nickel to capture graphene, nickel or copper foam is used. The metal foam captures graphene in a similar foam structure. The metal skeleton is then etched away and left is a visible, porous 3D graphene foam structure. This structure has a high surface area, which opens several exciting applications for Graphene Foam while maintaining most of two-dimensional graphene’s properties1. CVD processing of Graphene Foam opens a cost-effective route for engineering a new class of ultra-light, highly conductive graphene-based materials with exceptional mechanical strength, flexibility, and elasticity.


  • Sample size: 2"x2"
  • Thickness: 1.2 mm      The size can be customized
  • Carbon content: 99%, no metal support
  • Density: 4 mg/cm 3
  • Pore Size: 580 microns

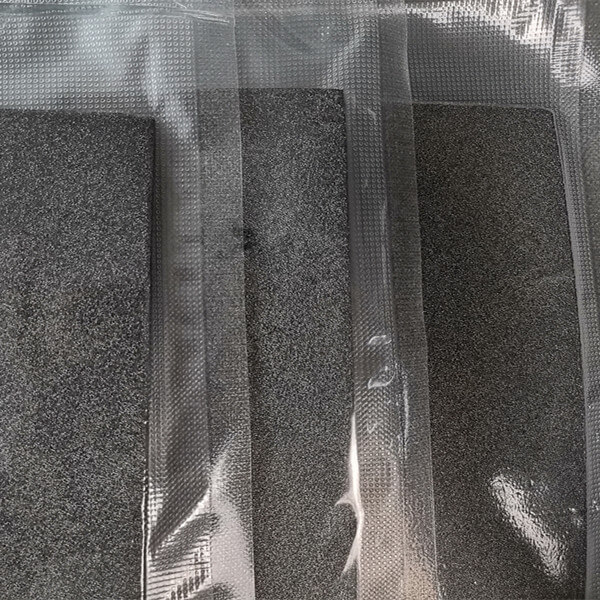

  • Packing:  in sealed membrane box

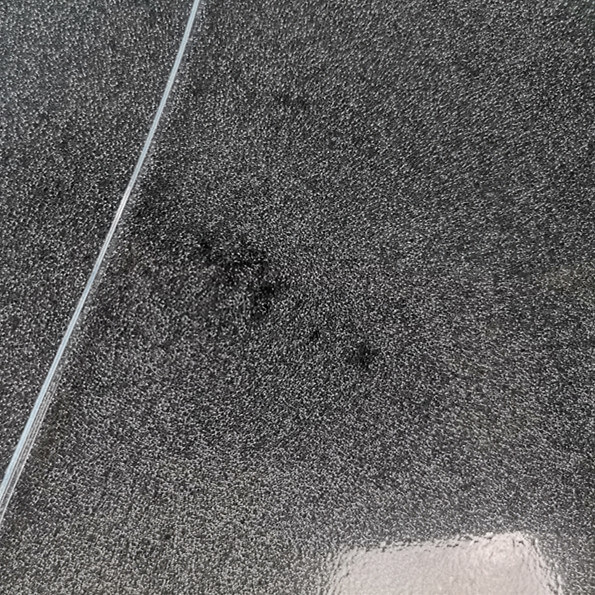

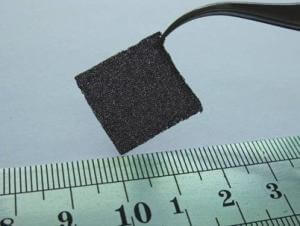

Graphene Foam


Graphene Metal Foam


Graphene foam



CE Certificate


Cooperative Brand



PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME : 15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.


Warehouse and transportation
