Electronic Rolling Calendar Electrode Roller Machine For Lithium ion Battery Making Electronic Rolling Calendar Electrode Roller Machine For Lithium ion Battery Making

Electronic Rolling Calendar Electrode Roller Machine For Lithium ion Battery Making

  • Product Details

Heat Pressing/Roller /Calender Machine For rolling electrode(100-300mm width)


LITH-TCH-GY150A Hot rolling machine is mainly applied to laboratory battery materials, a small amount of gold and silver and other precious metals, copper and other nonferrous materials at a certain temperature, electric hot rolling, rolling thickness adjustable, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.

SPECIFICATIONS:

ITEM

Unit

Data

Size(L*W*H)

mm

390x250x356

Weight

kg

55

Roll Width

mm

100-300

Hot rolling width

mm

100-300

Calendering thickness

mm

0~2

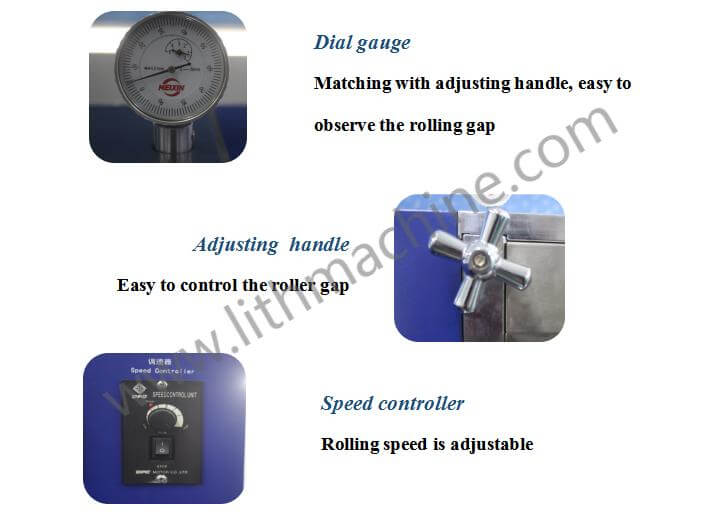

Dial Gauge Accuracy

mm

0.01

Rolling Speed

mm/sec

0~10

Roller Surface Max. Tem

°C

130

Surface hardness of rollers



HRC60-62

Total Power



AC220V,720W

Electrode

Size

Original thickness

Finished thickness

LiFePO4 double sides

50mm Width x 260mm Length

0.205mm

0.09mm

LiMn2O4 double sides

50mm Width x 260mm Length

0.205mm

0.09mm

Copper foil + graphite (single side)

75mm Width x 240mm Length

0.09mm

0.04mm


Rolling Press Machine

Rolling Press Machine

Rolling Press Machine










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
