ItemNo :
LITH-60V1000AHMOQ :
1Port :
Xiamen PortCompliance:
CEWarranty:
2 yearsDelivery Time:

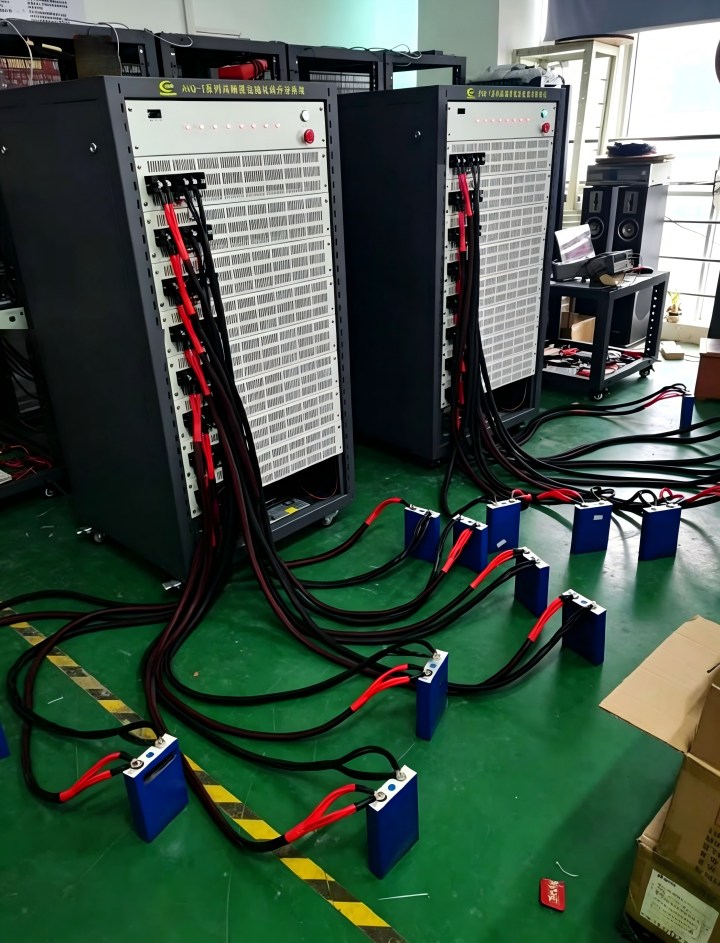

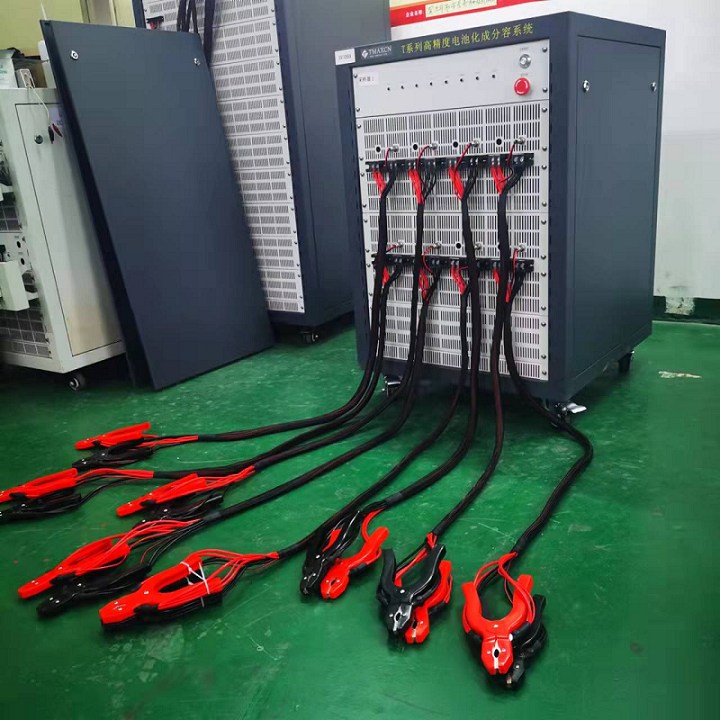

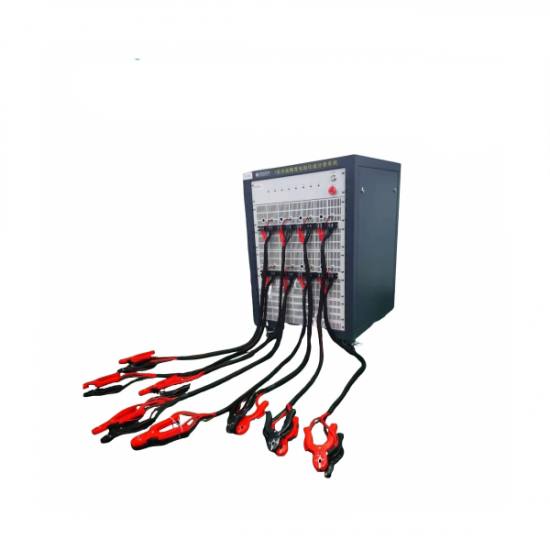

5 days60V 200A 2-Channel Prismatic Lithium Battery Aging Cabinet
1. Specification
|
Indicator items |
Indicator parameters |
|
Equipment model |
LITH-60V200A-02CH |
|
Equipment specification |
60V / 200A |
|
Number of channels |
2 |
|
Channel control mode |
Independent control, 4-wire voltage & current sensing |
|
Channel structure |
Dual closed-loop constant current & constant voltage source |
|
Input impedance |
≥1 MΩ |
|
Voltage range (charge) |
100 mV–60 V (device port) |
|
Voltage range (discharge) |
6 V–60 V (device port, depends on cable length) |
|
Voltage accuracy |
±0.05% FS (15°C–35°C) |
|
Current range (charge) |
0.4–200 A |
|
Current range (discharge) |
0.4–200 A |
|
Current accuracy |
±0.05% FS (15°C–35°C) |
|
Single channel power |
12 kW |
|
Power stability |
0.2% FS |
|
Current response time |
≤100 ms |
|
Data recording frequency |
1 Hz |
|
Data recording conditions |
Min time: 1 s; Voltage step: 1 mV; Current step: 1 mA |
|
Charge mode |
CC / CV / CC-CV / Constant power |
|
Charge cutoff conditions |
Voltage / current / time / capacity / -ΔV |
|
Discharge mode |
CC / constant power / constant resistance |
|
Discharge cutoff conditions |
Voltage / current / time / capacity / -ΔV |
|
Pulse mode (optional) |
CC / constant power |
|
Minimum pulse width |
≥5 s recommended |
|
Pulse cutoff conditions |
Voltage / time |
|
DCIR (optional) |
Supports custom point extraction for DCIR calculation |
|
Cycle test |
399 commands, up to 65,535 cycles |
|
Cycle nesting |
Supports 5-layer nesting |
|
Software protection |
Power-off data protection, UPS restart support |
|
Protection functions |
Over/under voltage, over/under current, capacity protection, reverse polarity protection |
|
Data export |
Excel / PDF |
|
Cooling method |
Air cooling |
|
Noise |
≤50 dB |
|
Communication |
Ethernet (network) |
|
System requirement |
Windows XP and above |
2.Equipment working environment requirements：
|
Indicator items |
Indicator parameters |
|
Operating temperature range |
0℃-40℃ |
|
Storage temperature range |
-10℃-50℃ |
|
Relative humidity of working environment |
≤70% RH (No water vapor condensation) |
|
Relative humidity of storage environment |
≤80% RH (No water vapor condensation) |
|
Input active power |
8000W |
|
Input power supply |
AC380V±10%/50Hz,Other power specifications available |
|
Clamp type |
Crocodile clamp terminal |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
