5L Magnetic De-Ironing Filtration Machine For Battery Electrode Slurry

Contact Now

5L Magnetic De-Ironing Filtration Machine For Battery Electrode Slurry

Features

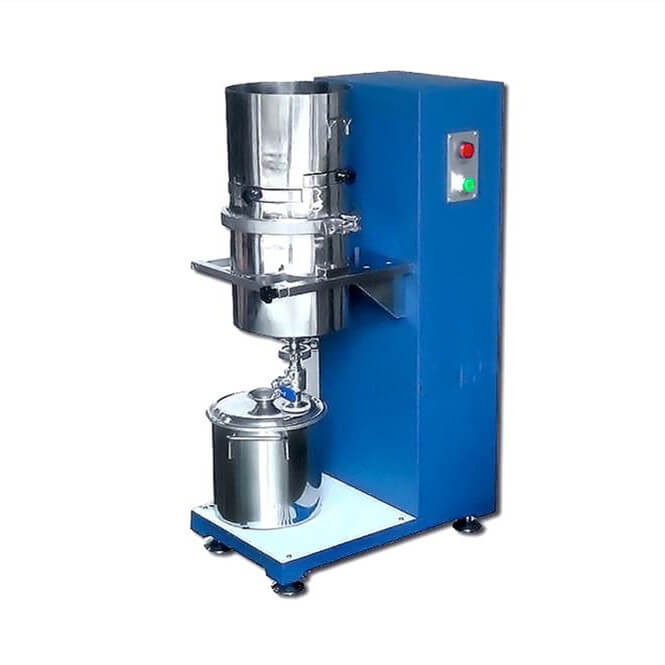

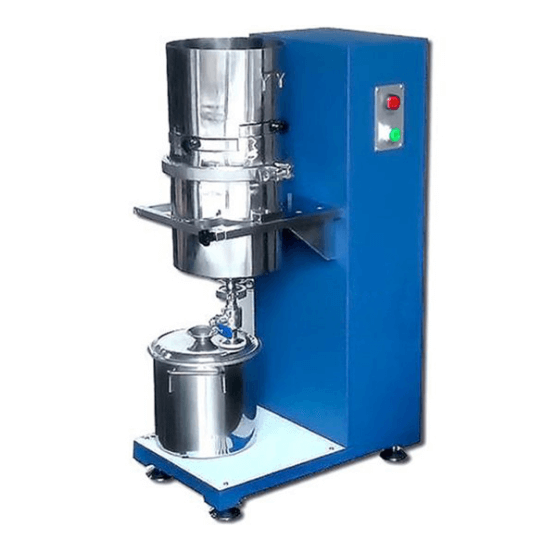

MSK-FT02 is a CE Certified magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.

Specifications

De-Ironing Filtration System

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Magnetic De-Ironing Filtration Machine 5L Filtration Machine Filtration Machine For Battery Electrode Slurry

Structure	Containers Made of Stainless Steel 304
Voltage supply	Input:110VAC - 240VAC universal power Output to machine: 24VDC via a CE, UL-certified adapter for worldwide use
Power	50W
Working Temperature	<=40°C
Process Capacity	5L
Magnetic Field Strength	8000 G
Filter	3 mesh filters: 80, 100, 120 Optional 150,200,250,325 mesh size is available upon an email request
Slurry Viscidity	<=15000CP
Humidity	0-90%RH
Deironing Function	8000-10000 GC

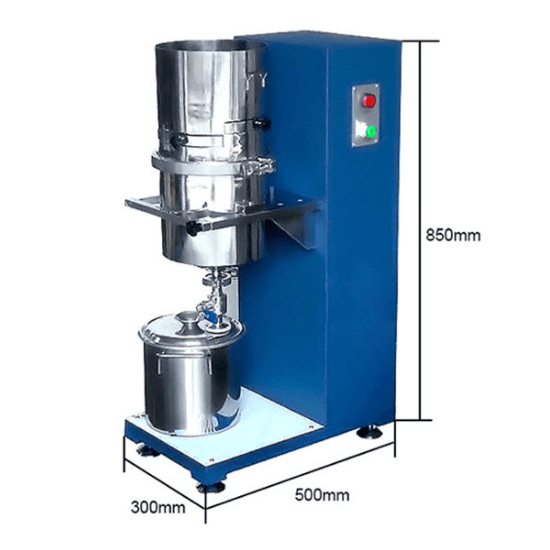

Overall Dimensions	500mm(L) x 300mm(W) x 850mm(H)
Shipping Weight & Dimension	130 lbs, 48"x40"x43"
Compliance	CE Certified CE, TUV, UL, CSA certified in power supply Machine is safe 24VDC input ， which can be used without any safety certification
Warranty	One year limited with lifetime support Parts rusted without regular cleaning and maintenance are not covered by the warranty

Item No.	Product Name	QTY
MSK-FT02	Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry	1
FT02-Tank	Receiving tank for Battery Electrode Slurry	1
FT02-Container	Slurry Container	1
FT02-FILTER	80,100,120 Filter mesh (3 pcs)	1 SET
UL adaptor	UL certified adaptor	1
Hex wrench	4mm Hex wrench	1
Screw-bolt	Screw-bolt for taking out Magnetic rods	1
