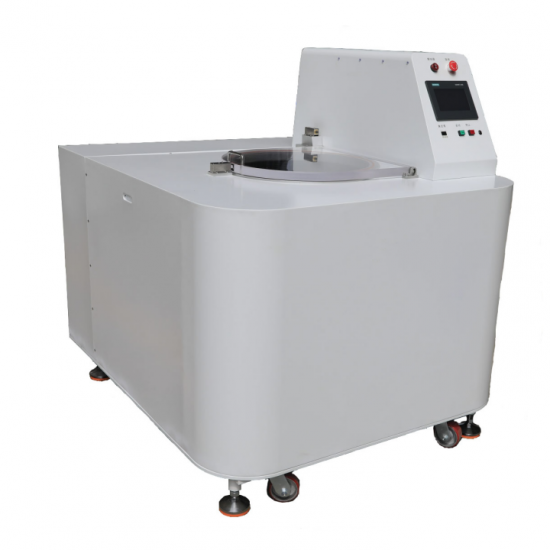

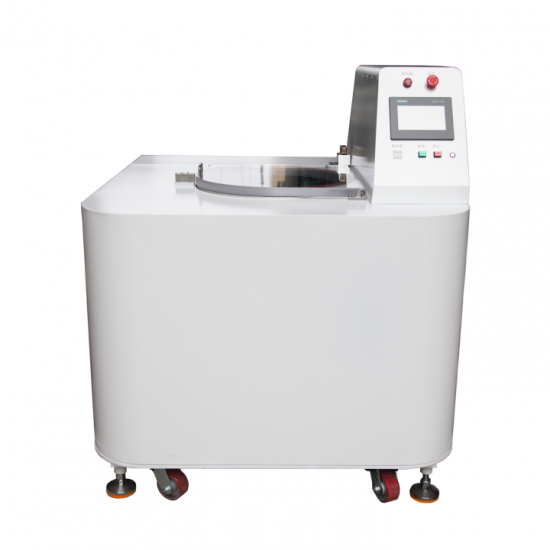

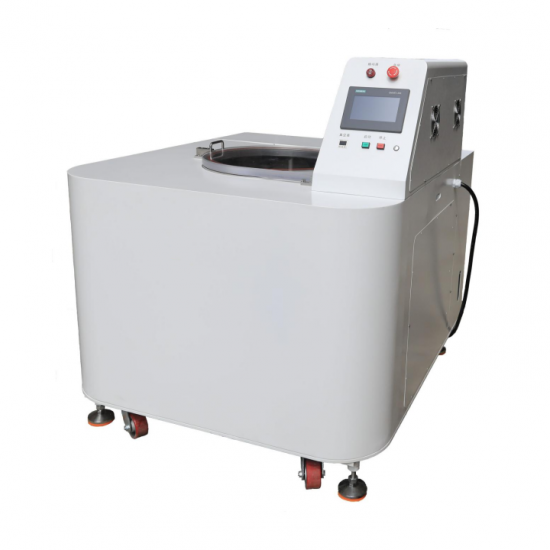

Louis@lithmachine.com20L Stepless Speed Regulation Stirring Mixer Used The Dispersion, Mixing And Deaeration
Model: ITT-20000S
Application: It is suitable for the dispersion, mixing and deaeration of multi-component materials (such as silicone, multi-component epoxy resin, etc.).
Standard container: 20L (20L stainless steel drum or PEφ320*300)
Compatibility:
10L (PE+PPφ237*258)
4000ml (PE+PPφ 173*193)
Maximum processing capacity: 5KG to 30KG *2 ≤12000mL
Revolution: Stepless speed regulation from 50 to 600rpm. Input freely according to the actual needs of the user and adjust by 1rpm.
Rotation: Constant speed ratio 0.8
Time setting: 0-3000S x 5(a total of five steps), accuracy 1 second;
Parameter storage capacity: 5 groups
Vacuum degree: -100KPa, accuracy 0.1KPa; Absolute pressure < 200Pa, 0.2KPa
Vacuum source: Built-in two-stage advanced vacuum pump 1800L/ minute (=30L/ second =108m3/ hour)
Vacuum setting: Independent vacuum switch with vacuum delay function, vacuum degree can be adjusted arbitrarily;
Bearing: Japanese NSK bearing;
Control system: Human-machine dialogue, Chinese interface, touch screen operation;
Balance adjustment: Double-cup configuration balance;
Transmission mode: Gear transmission
Working principle: Revolution, rotation, wingless centrifugal gravity mode;
Alarm device: An alarm will be triggered when the upper cover is not covered during operation.
Safety protection: The upper cover is locked during operation. The machine will stop working when the upper cover is opened.
Applicable temperature and humidity: 10-40 ℃ 20 to 80%RH (no foggy moisture is acceptable);
Voltage: AC380V±5% 3-Phase; 50-60Hz
Power: Total power 18KW, rated power of the main shaft motor 18KW, rated power of the vacuum pump 3KW
External dimensions: L1250×W1450×H1600mm
Weight: 950Kg.
Equipment features:
1) The rotational and orbital movements generate a centrifugal gravitational force of up to nearly 800G, which strongly disperses and defoams.
2) There are no spiral blades to achieve stirring and dispersion within the container.
3) No cleaning is required and it will not contaminate the materials.
4) Do not damage the properties of the material (especially fibrous materials);
5) Human-computer interaction and convenient operation;
6) An optimized design that is ultra-small, ultra-light and ultra-quiet.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
