113um Thickness Aluminium Laminated Film for Pouch Cell Cup

113um Thickness Aluminium Laminated Film for Pouch Cell Cup

  • Product Details

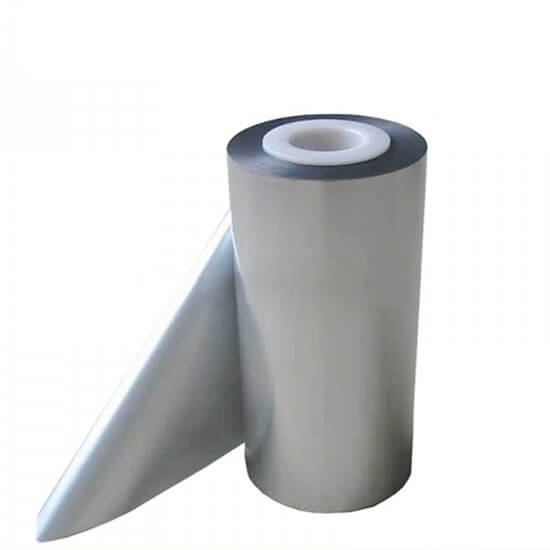

 113um Thickness Aluminium Laminated Film for Pouch Cell Cup


We can supply aluminium laminated case with customized size.


SPECIFICATIONS:

Layers from outside

(Shiny) to inside (Mat)



Polyamide (JIS Z1714):                 0.025mm (+-0.0025mm)

Adhesive (Polyester-polyurethane):      4-5 g/m2
Aluminum foil (JIS A8079,A8021):   0.040mm (+-0.004mm)
Adhesive (Urethane-free Adhesive):     2-3 g/m2
Polypropylene:                                      0.040mm (+-0.004mm)

Thickness

113μm

Width

400mm

Length

10m

Surface quality

Mat finish

Pinholes

Subject to the applicable aluminum foil standard

Impurity

1mm or less in diameter

Fish Eye

2mm or less in diameter (clear),1mm or less in diameter (colored)

Molding Depth

≥5.0mm

Electrical Insulating

Good

Hot Sealing Coniditon

180-190°C

Moisture Vapor / O2

Transmission Rate

200ppm / 5 years

Laminate Strength

Nylon/Al   more than 2N/15mm Al/CPP   more than 5N/15mm

Heat Seal Strength

More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by TOB heat sealing

Solvent Retention

Less than 5mg/m2

Appearance

Within the sample of the limit

Slip Factor

CPP/CPP   less than 1.0

Application Notes

Click the picture below to see the finished polymer Li-Ion battery made by heated sealer






Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer




For the pouch cell assembly, we also recommend you the following items:









PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
