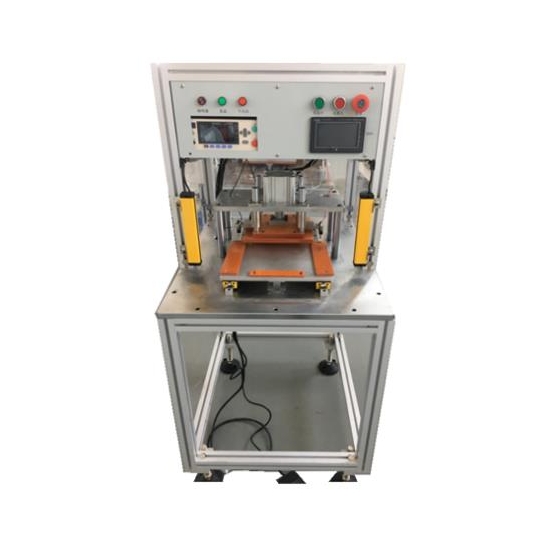

Louis@lithmachine.comPrismatic Cell OCV Sorter And Tester Machine for Internal Resistance And Voltage Testing And Manual Sorting
1、 Equipment introduction
1. Equipment application
This equipment is designed to test the internal resistance and voltage of prismatic battery and conduct manual sorting after PLC automatically judges the sorting grade, and scan the code to read the capacity; Test the side voltage; Test the thickness of the electric core; And connect all data to MES system. The fixture is manually placed on the mobile fixture, and after the battery is placed, click the duplex control button with both hands, and the fixture will automatically move to the preloading position to complete the inspection process. Finally, it will be manually taken and manually operated in a reciprocating cycle, Continuous production can be realized (the test function includes code scanning and reading capacity; test voltage and internal resistance and record them in the QR code; test edge voltage to distinguish ng; secondary test OCV and software to distinguish; cell thickness measurement and upload to the corresponding bar code; all data are uploaded to the MES system).
2. Equipment structure
It is composed of manual operation platform / voltage testing mechanism / internal resistance testing mechanism / code scanning testing mechanism / side voltage testing mechanism / main control mechanism and other devices.
3. Equipment action process
Manually put the battery on the feeding test bench, and automatically enter the test station through the platform to test the voltage, internal resistance and code scanning; The thickness measuring mechanism presses down to measure the thickness; After the detection, the PLC sorts according to the preset sorting conditions and the indicator light is turned on. The edge voltage test needle interlocks to puncture the aluminum film and test the positive and negative electrode ears; Finally, manually classify the batteries according to the test data.
4. Software functions
1) Language: Simplified Chinese;
2) Scanning QR code reading capacity; Accurately read the voltage / internal resistance stored by the battery in the database.
Process editing and management functions:
3) Process editing and management functions:
a. Three parameter gear detection can be set, and different values can be selected according to the set gear;
b. The tested data files can be saved in the computer, and RS232C interface can be equipped for remote control and data acquisition and analysis.

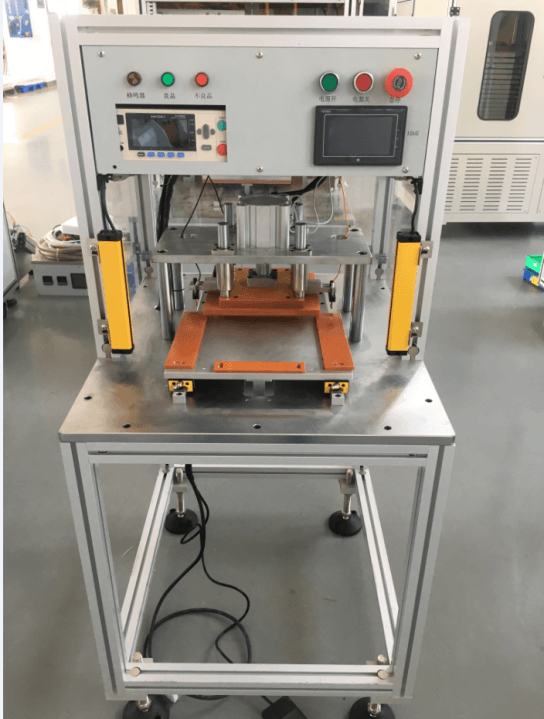

2、Outline drawing of equipment (for reference)
3、Technical parameters of equipment
1. production efficiency： 2ppm；
2. Boundary dimension range of battery: L 80～300mm；W 50～200mm;T 2～18mm； It can be designed according to the size of the battery provided by the user;
3. Test mobility≥95%。The equipment operates for 8 hours, and the commissioning and maintenance time is less than 1%；
4. Product qualification rate 99%, The product qualification requirements are in accordance with the above requirements.
4、Technical parameters of instrument
1. Insulation resistance measurement range：100k～10TΩ；
2. Basic accuracy of insulation resistance:<1G: 1%，≥1G: 3%，≥10G: 5%，≥1T: 10%；
3. Output any negative voltage：1.0VDC～1000VDC，<100V：Voltage step 0.1V，≥100V：
4. Voltage step 1V，Basic accuracy：1%；
5. Thickness measurement accuracy: servo motor counterweight test, accuracy ±0.1mm
5、Main components of equipment
1. Cylinder：SMC/AirTAC；
2. Solenoid valve：SMC/AirTAC；
3. Temperature control meter: OMRON；
4. guide：HIWIN/KKT；
5. Linear bearing：MISUMI；
6. PLC:Mitsubishi / Panasonic；
7. Induction switch: Omron or kians；
8. Touch screen: display and control；
9. Servo: Panasonic
6、Installation environment requirements
1. Configure power supply：AC220V，50Hz, Voltage fluctuation range：+10%～-10%；
The total power of the equipment is about 3KW;
2. Compressed air: 0.25 ~ 0.76mpa; Air pressure fluctuation ± 1% (clean air after water removal, oil-free, filtration and pressure stabilization);
3. Equipment specification:
1) Equipment weight: About 450kg;
2) Overall dimension: about L (1.8m) * W (1.6m) * H (1.8m);
3) Appearance color: light gray or customer specified.
4. Environmental requirements:
1) Ambient temperature: 25 ± 5 ℃;
2) Relative humidity: 30% - 75% RCH, ensure that the air on site is dry and unblocked without acid-base corrosion;
3) Ground wire: protective grounding.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
