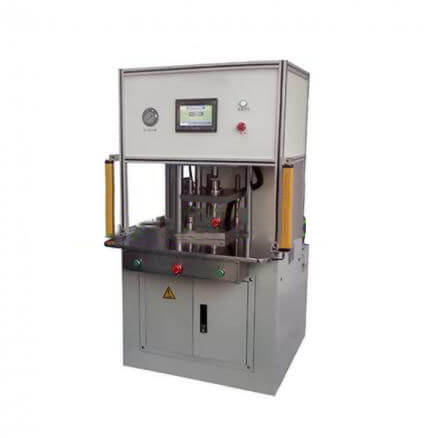

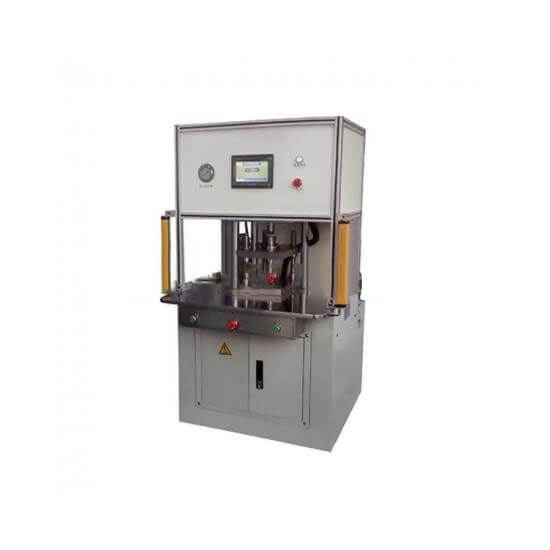

Pole Ear Riveting Machine

Functional overview

Suitable for the riveting of supercapacitor and lithium-ion power battery' s pole ear and leading-out terminal.

Functional characteristics

1.Adopt hydraulic system as the punching power, with big force and stable speed.

2.The device adopts PLC control system to ensure stable and reliable system operation, and simple operation.

3.Riveting punch adopts high-strength and high-wear-resisting alloy die steel, with good wear resistance.

4.Equipped with safety light grid and protective door, with safe and reliable operation.

Technical parameters

The maximum slider stroke	100mm
The maximum riveting pressure	16t
Pressure holding time	0~10s(can be set)
Power source	AC380/50Hz Power:6KW
Overall dimensions(LxwxH)	660x1100x1500mm
Weight	420kg

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
