Optional PTFE Or Quartz Liner 18650/21700 Cylindrical Battery Split Type Cell

Features

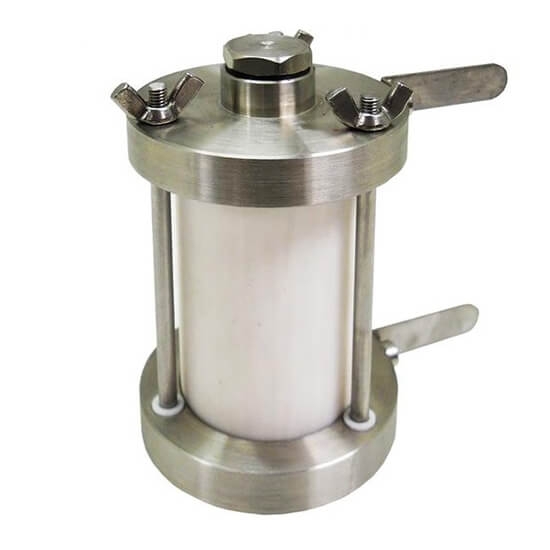

Split Type Testing Cell is designed for testing cylindrical batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.

(Optional: 18650/26650/21700 cell)

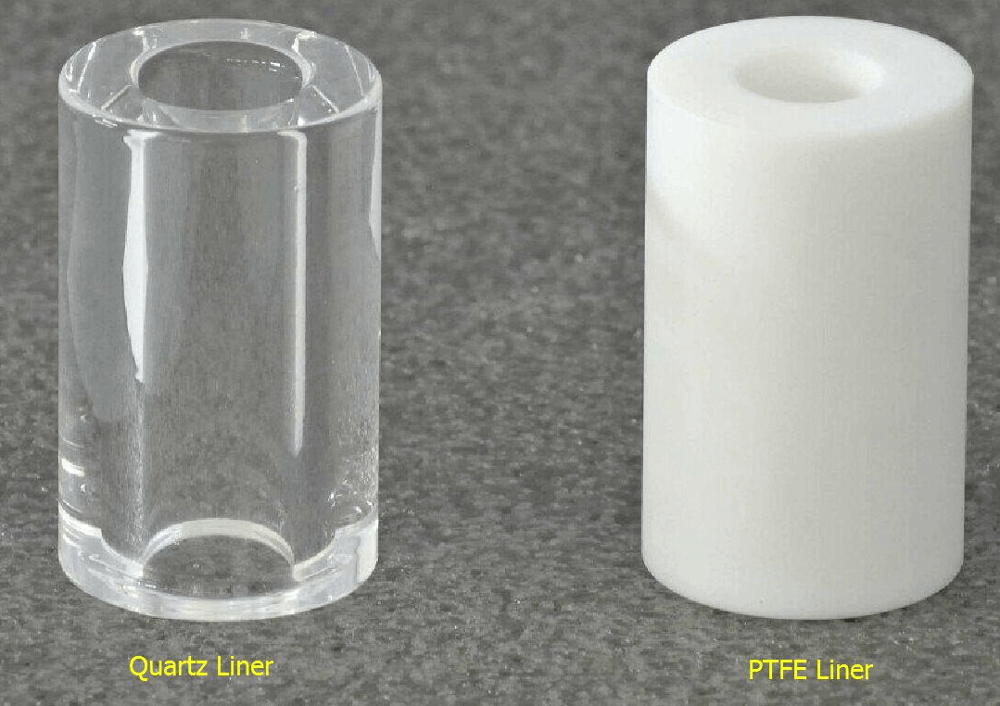

Material: PTFE or Quartz

Specifications

18650 Cell

Dimensions (Dia. x Height)

1 ID of PTFE Body: 18mm

2 Height of PTFE Body: 65mm

26650 Cell

Dimensions (Dia. x Height)

1 ID of PTFE Body: 26mm

2 Height of PTFE Body: 65mm

21700 Cell

Dimensions (Dia. x Height)

1 ID of PTFE Body: 21mm

2 Height of PTFE Body: 70mm

Model	EQ-SC-18650-TF	EQ-SC-18650-Qz
Dimensions (Dia. x Height)	ID of PTFE Body (liner): 18mm Height of PTFE Body: 65mm	ID of Quartz Body (liner): 19mm Height of PTFE Body: 65mm
Material	Caps: Full Stainless steel 304 end caps Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 250ºC O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings	Caps: Full Stainless steel 304 end caps Body liner: Transparent quartz body allows you to perform In-situ Laser Raman Spectroscopy. O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings
Nylon Sleeve	A nylon protective sleeve is included for the Quartz Liner version only
Design	Easy assembling with only four cap mounting screws Easy to separate for cleaning after the test Space saving, compact design allows you put it into the glove box Click the images in below for the detailed illustration of these cell components
Option	Anti-corrosive Au coating on the top & bottom stainless steel caps is an option
