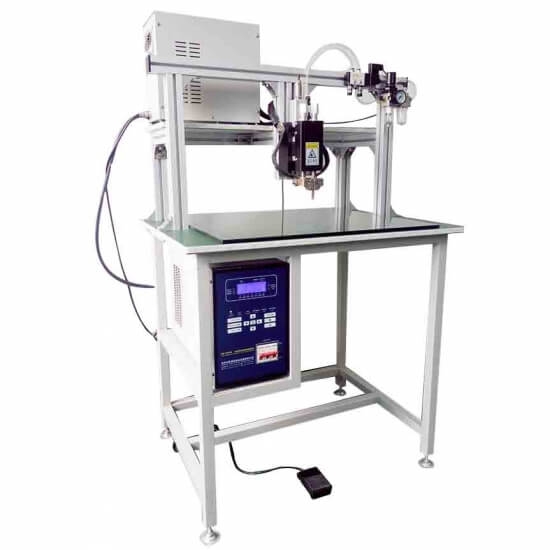

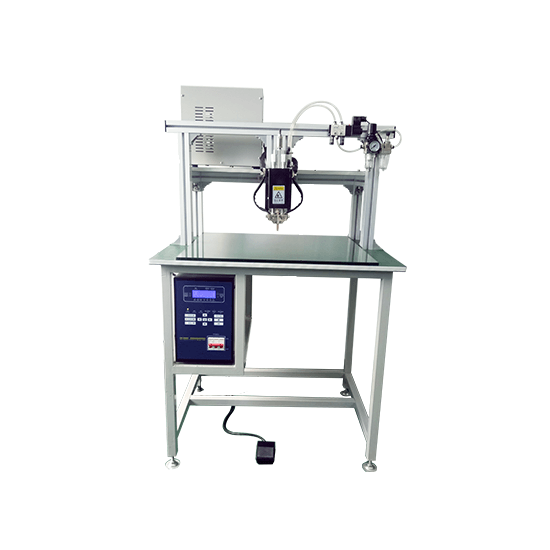

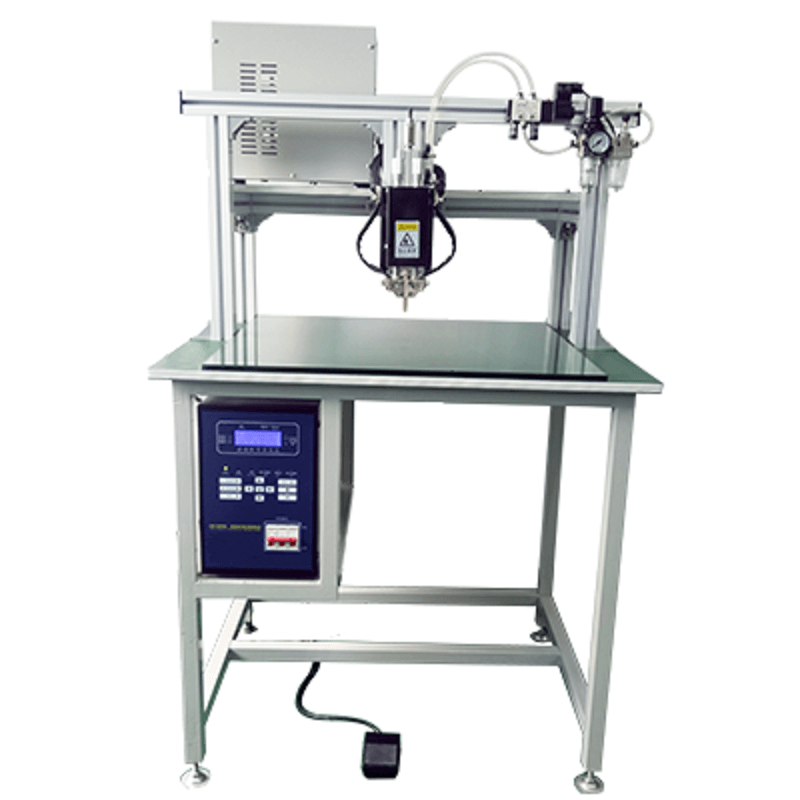

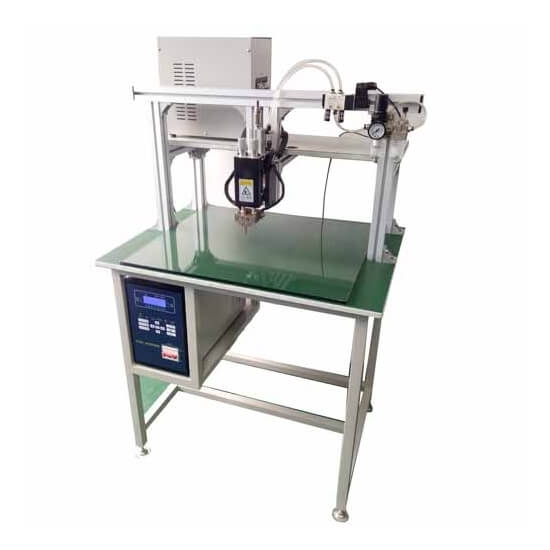

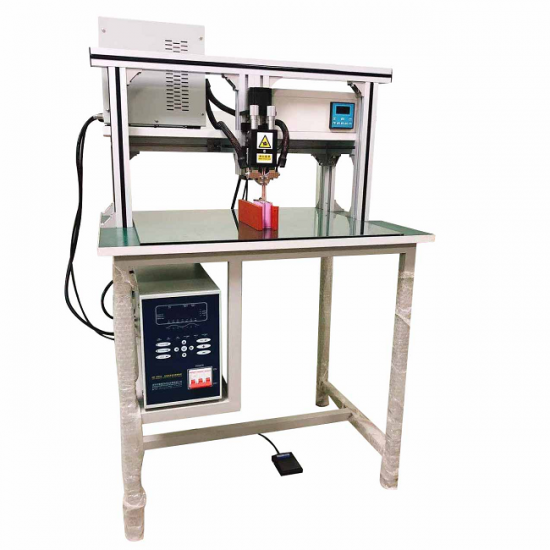

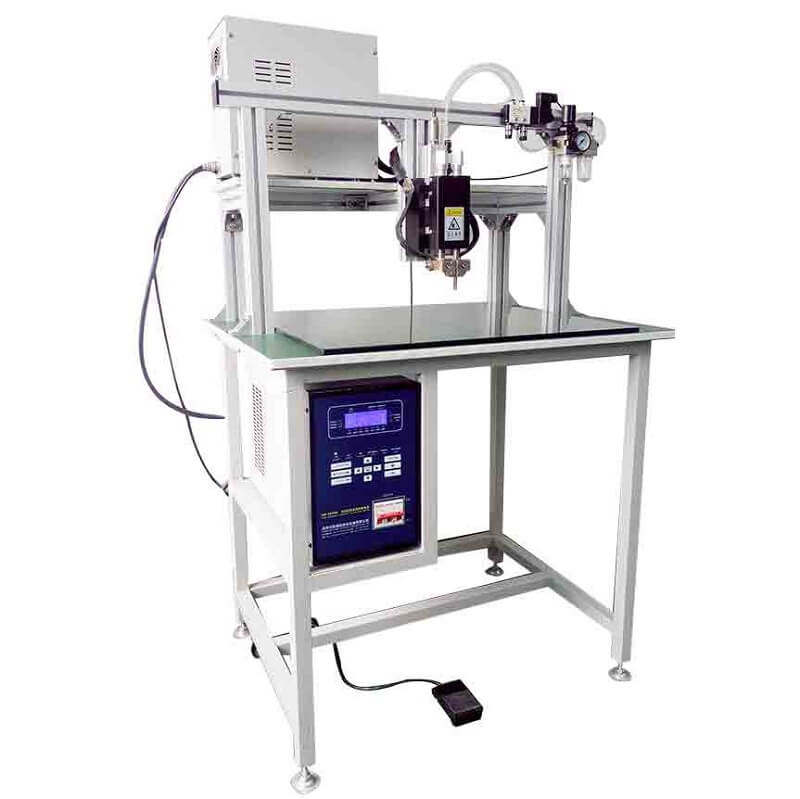

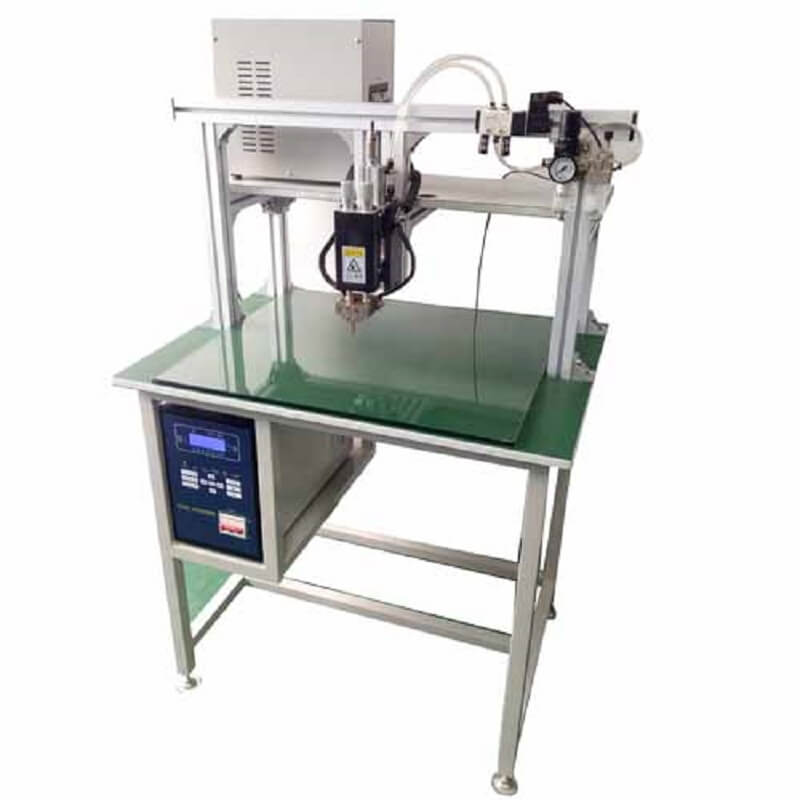

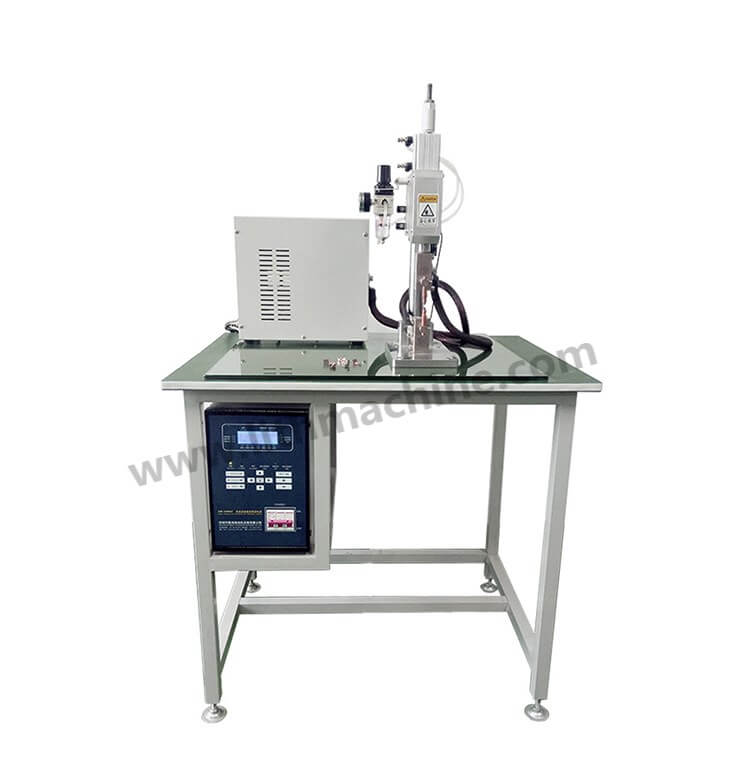

Louis@lithmachine.comManual 5000A/8000A Pneumatic Inverter DC Spot Welding Machine For Battery Pack Assembly for EV Bike Battery Pack
Introduction:

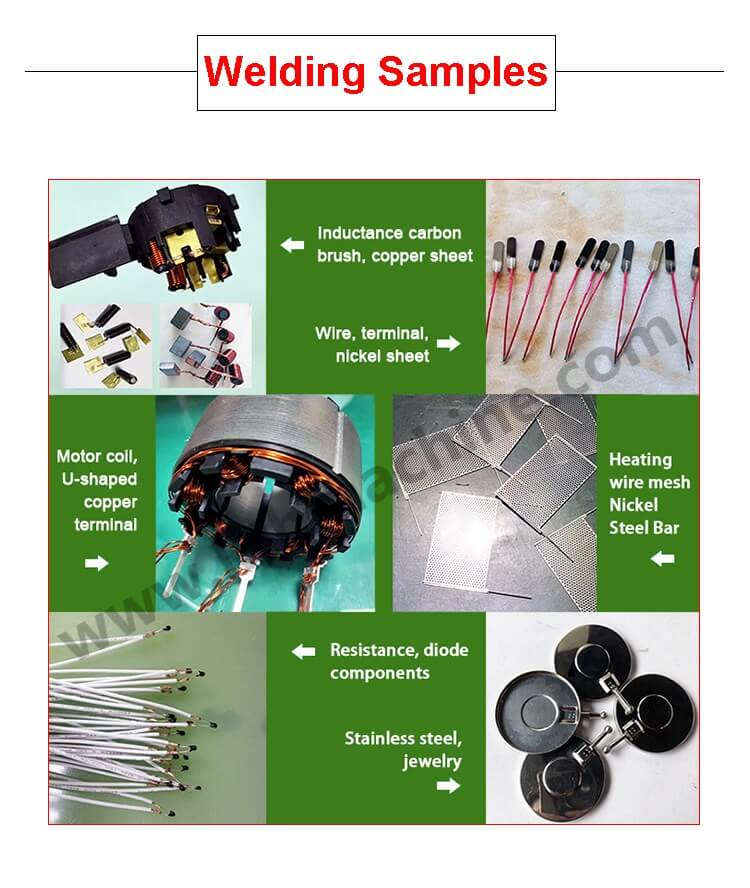

This machine is used for 18650, 21700, 26650, 32650, 32700 and other cylindrical battery pack welding, such as: energy storage power supply, electric bicycle power supply, hand tool power supply etc. It’s a spot welding machine with high welding efficiency, good welding quality and easy operation,

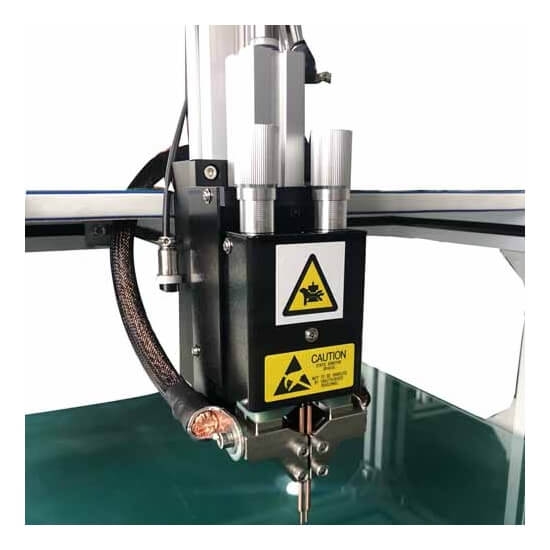

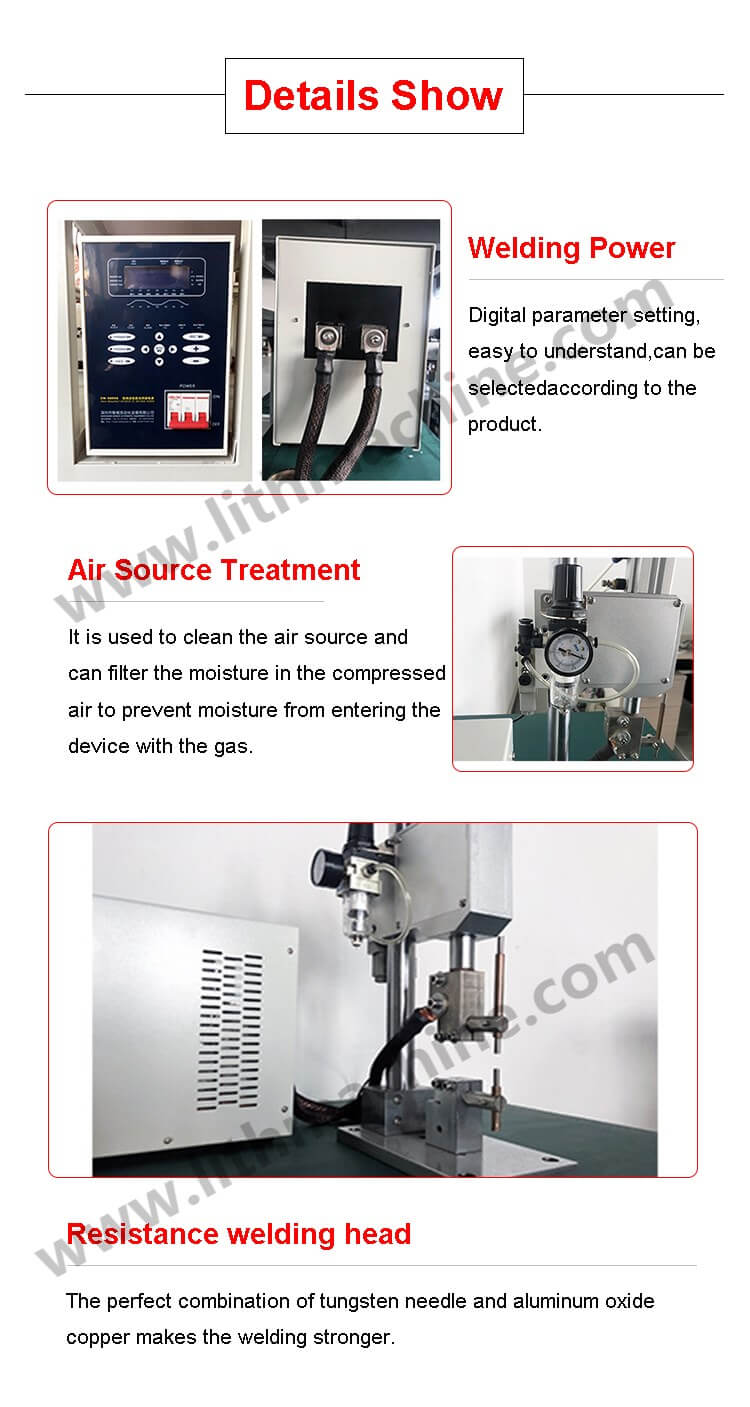

Product description:

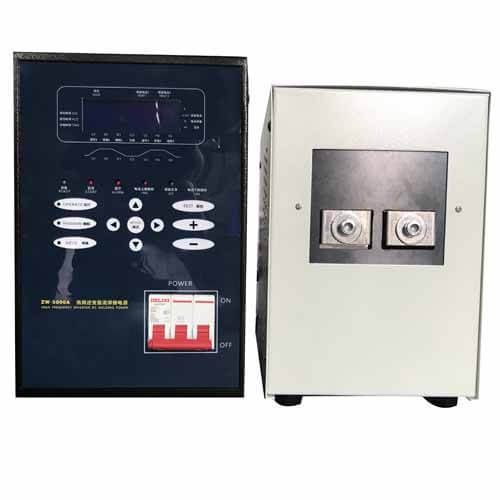

High-performance energy storage spot welder:
The welding pulse width is adjustable, the welding spatter is small, and the welding spot does not change color. It has a 5-digit counter to count the number of successful welding, and can also set a counting alarm to remind the repair of the welding needle. With fault self-diagnosis function, and display the corresponding fault point, easy to maintain.
Computer energy storage welding machine is an advanced high-performance energy storage spot welding machine, controlled by a microcomputer single-chip microcomputer, imported IGBT module, imported film capacitor, blue LCD large liquid crystal display, small welding spatter, stable and reliable performance, suitable for batteries, Precision welding of metal parts such as hardware.
Welding time can be adjusted precisely:
Adjustable welding time: 10ms-200ms, accuracy: 0.1ms
Welding voltage locking technology:
The welding voltage locking technology prevents the fluctuation of the network voltage from affecting the welding current. The welding pulse width is adjustable, the welding spatter is small, and the welding spot does not change color. It can realize single-pulse, double-pulse and multi-pulse welding. It has two-stage current monitoring and comparison function, and the current is abnormal. The sound and light alarm effectively prevents the occurrence of false welding and false welding.
Specification:
|
Model |
LITH-DC-01 |
|
Transformer Maximum Output Power |
35KVA |
|
Maximum Output Short Circuit Current |
5000A |
|
Welding Conditions |
8 |
|
Open Circuit Voltage |
10V |
|
Control Mode |
Constant Current Control |
|
Input Frequency |
AC 220V±10% 50Hz |
|
Weight |
55KG |
|
Welding Thickness |
Maximum thickness of parallel welding:0.03mm~0.5mm |
|
Maximum Thickness of Upper and Lower Butt Welding |
0.3mm+1mm |
|
Size |
800*600*1200mm |
|
Working air source |
0.4~ 1.0Mpa |
|
Current |
5000A |
8000A |
|
Input Power |
AC 380V±10%, 50Hz±2Hz |
AC 380V±10% , 50Hz±2Hz |
|
Rated capacity |
25KVA |
35KVA |
|
Maximum output short circuit current |
5000A |
8000A |
|
Output current range |
800-5000A |
500-8000A |
|
Output voltage |
10V |
10V |
|
Inverter frequency |
4KHz |
4KHz |
|
Welding time |
1.0ms—99.0ms adjustable,accuracy:0.1ms |
1.0ms—99.0ms adjustable,accuracy: 0.1ms |
|
Welding pulse section |
2 |
3 |
|
Welding cycle period |
1 |
11 |
|
Working table size |
600mm*800mm |
600mm*800mm |
|
Welding range |
580mm*580mm |
580mm*580mm |
|
Adjustable height range of welding head |
10-150mm |
10-150mm |
|
Welding needle specification |
1.5mm-3mm/6mm optional |
1.5mm-3mm/6mm optional |
|
Adjustable distance between welding needles |
0-10mm |
0-10mm |
|
Adjustable stroke of cylinder |
5-30mm |
5-30mm |
|
Specification of secondary discharge cable |
95mm² |
95mm² |
|
Cable length |
500mm |
500mm |
|
Adjustable range of welding head pressure |
1-5kg |
1-5kg |
|
Welding speed |
0.5-0.8s/point |
0.5-0.8s/point |
|
Plane double needle welding thickness |
0.08-0.25mm plated nickel/pure nickel |
0.08-0.3mm plated nickel/pure nickel |
|
Welding thickness of convex point and flat needle |
0.15-0.3mm plated nickel/pure nickel |
0.2-0.5mm plated nickel/pure nickel |
|
Number of settable specifications |
8 |
99 |
|
Display |
LED |
TFT 800X480 Capacitive touch screen |
|
Over limit alarm setting mode |
Current setting |
Current setting + current wave monitoring |
|
Welding mode |
Single welding |
Single or double welding |
|
control mode |
PWM |
PWM |
|
Control way |
1200V 200A IGBT |
1200V 300A IGBT |
|
Control mode |
Constant current |
Constant current and constant voltage |
|
Cooling |
Forced air cooling |
Forced air cooling |
|
Weight |
35KG |
40KG |
|
Weight of main machine |
430L*185W*280H mm |
455L*205W*315H mm |
|
Transformer size |
265L*180W*255H mm |
475L*200W*290H mm |
|
Whole main size |
800Lx600Wx1200H mm |
800Lx600Wx1200H mm |
|
Welding application |
Battery connection piece, hardware sheet, wire harness, terminal block, etc |
Battery connection piece, hardware sheet, wire harness, terminal block, etc |
