Introduction
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.
Usefulness: (Various shapes can be produced)
1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
Specifications
Type
Open cell
Purity
> 99%
Form

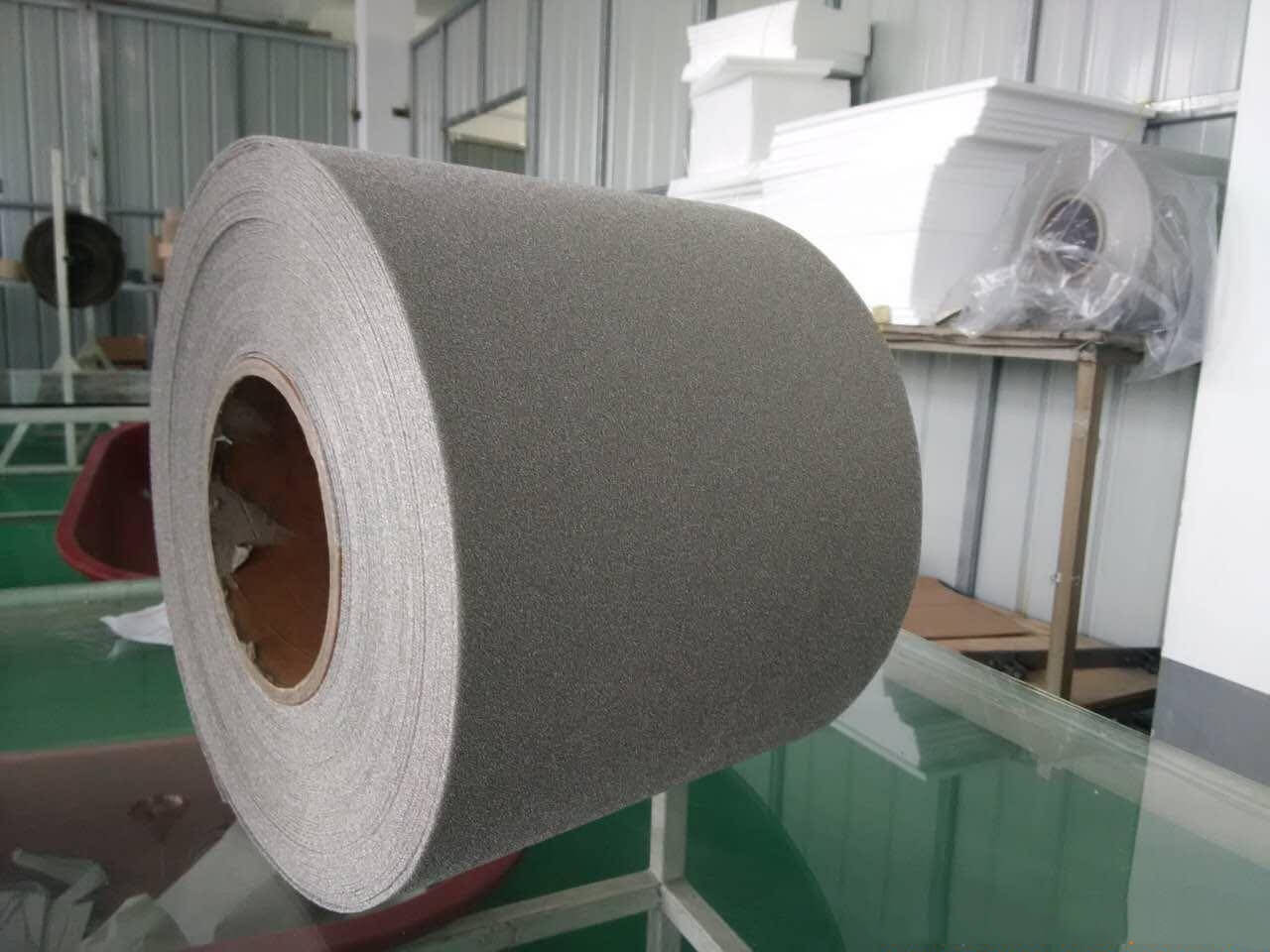

Sheet or Roll, depending on size & thickness

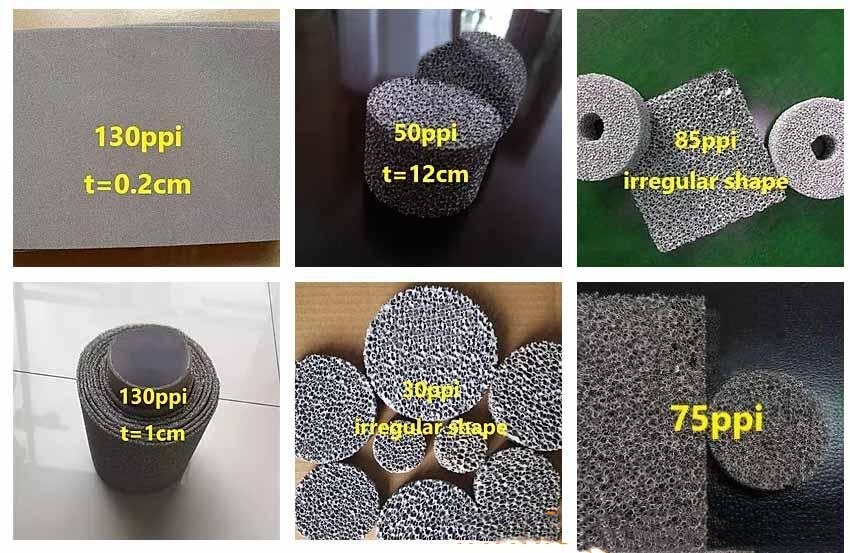

Cell Size (PPI)
10-150PPI, as per request
Thickness
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request
Porosity
95%-98%
Open Cell Rate
≥98 %
Volume Density
>0.1g/cm3, as per request
Surface Density
200-2500 g/m ^2, as per request
Thermal Conductivity (Theoretical)
>3W/M.K
Mechanical Strength (Theoretical)
≥2~7MPa
Tensile Strength (Theoretical)
8~50MPa
Temperature Resistance (Theoretical)
≥500℃
|
0.1mm*200mm*300mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
|
0.5mm to 1.7mm*200mm*300mm |
2mm*200mm*300mm |
3 to 4mm*200mm*300mm |
|
5mm*200mm*300mm |
6mm*200mm*300mm |
8mm*200mm*300mm |
|
10mm*200mm*300mm |
10 to 20mm*200mm*300mm |
The size can be customized |
Application field
Exhaust gas purifier carrier materials, battery electrode materials, all kinds of catalyst carrier, especially for high temperature resistance and acid and alkali corrosion filtering material, the surface of the infrared burner materials, all kinds of industrial and civil heating material drying equipment, etc.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
