Features
FuelCellsEtc's ELAT® LT2400W is a carbon cloth gas diffusion layer (GDL) with a carbon microporous layer on both sides. ELAT has been engineered to have state-of-the-art performance over a wide range of operating conditions. The thickness of this GDL carbon cloth is about 490 um.
Gas Diffusion Layers (GDL) are key components of the membrane electrode assembly of the polymer electrolyte membrane fuel cell (PEMFC). The PEMFC can provide traction, residential and portable power.
• Fuel Cells
• Electrolysis
• Flow Through Batteries
• Water Clean-up Electrochemistry

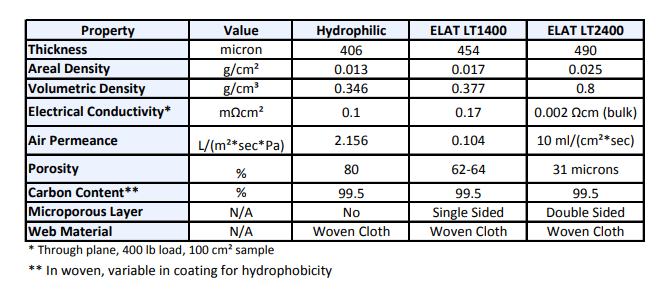

Technical Parameter
Gas Diffusion Layer Properties
Material Type
Woven Carbon Fiber
Thickness
0.490 mm (490 microns)
Basic Weight (g/m²)
250
Bulk Density
0.8 g/cc
Air Permeability (s)
10 ml/(cm²-sec)
Porosity
31%
Electrical Resistivity (through plane)
0.002 Ohm-cm (bulk)
Carbon Content (%)
99.5% in woven, variable in coating for hydrophobicity
Microporous Layer
On both sides of carbon cloth
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
CarbonFoam is a carbon cloth gas diffusion layer (GDL) coated with a microporous layer. Such a gas diffusion layer is engineered to have state-of-the-art performance over a wide range of operating conditions and it can serve as a catalyst support for organic electrochemistry, metal-air battery, fuel cells batteries, electrolyzers and more.
