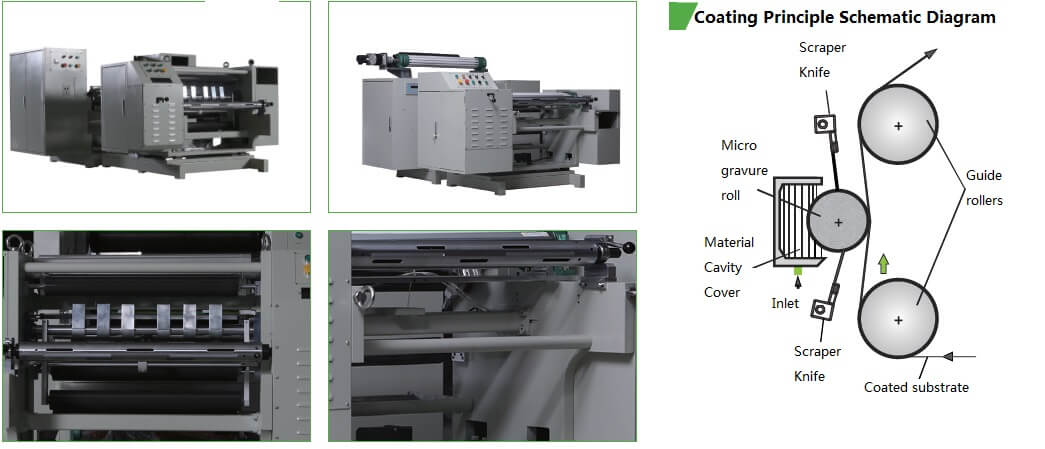

Diaphragm Coating Machine For Battery Production

Contact Now

Diaphragm Coating Machine For Battery Production

NO.

Project

Technical Parameters

1

Process adaptability

Lithium battery separator coating

2

Coating method

Continuous coating

3

Rewinding volume configuration

Single-axis / dual-axis manual roll change

4

Substrate processing

Preheating oven/ironing roller (surface leveling)

5

heating method

Electric heating / steam heating / oil heating

6

Oven configuration

Curved active over roller, length optional

7

Mechanical speed

Coating speed +10%

8

Coating speed

50m/min, 80m/min, 100m/min (depending on the model)

9

Coating width

00mm、900mm、1200mm

10

Coating thickness

--

11

Thickness accuracy

±0.5μm (when the coating thickness is greater than 1um)

Diaphragm Coating Machine

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags :

NO.	Project	Technical Parameters
1	Process adaptability	Lithium battery separator coating
2	Coating method	Continuous coating
3	Rewinding volume configuration	Single-axis / dual-axis manual roll change
4	Substrate processing	Preheating oven/ironing roller (surface leveling)
5	heating method	Electric heating / steam heating / oil heating
6	Oven configuration	Curved active over roller, length optional
7	Mechanical speed	Coating speed +10%
8	Coating speed	50m/min, 80m/min, 100m/min (depending on the model)
9	Coating width	00mm、900mm、1200mm
10	Coating thickness	--
11	Thickness accuracy	±0.5μm (when the coating thickness is greater than 1um)
