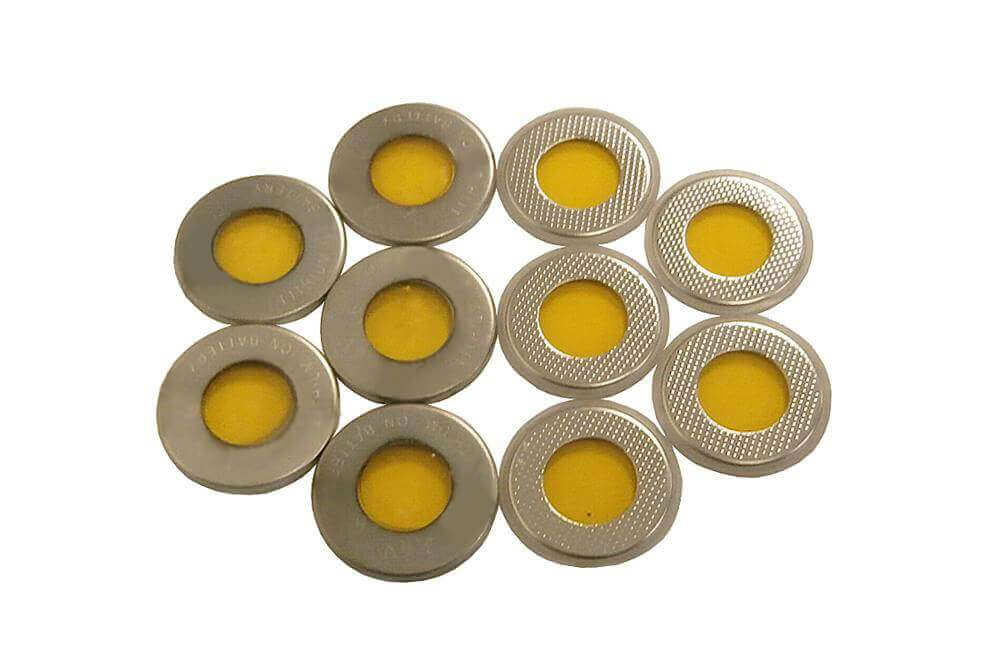

Coin Cell Case Case With Two Sides Kapton Windows For In-Situ Neutron Diffraction Analysis
|
Dimensions (Dia x Height) |
20mm x 1.6mm Or customized |
|
Kapton window thickness |
0.18mm |
|
Coating |
The positive side of casing is coated with aluminum |
|
Al coating thickness |
< 0.01mm |
|
Weight |
0.25 Oz (7 grams) |
|
Application note |
· In order to get better in situ XRD curve for battery, please use carbon foil as current collector instead of Al or Cu foil, which will absorb X-ray.
|
|
Name |
Model/Size |
Material |
|
Coin cell cases |
CR2032 |
304ss/316ss/Gold-Coated/Al-Coated/ Kapton |
|
CR2016 |
304ss/316ss/ Kapton |
|
|
CR2025 |
304ss/316ss |
|
|
CR2450 |
304ss |
|
|
CR2430 |
304ss/316ss |
|
|
CR2325 |
304ss |
|
|
CR1620 |
304ss |
|
|
CR1632 |
T:3.2mm D:16mm 304ss |
|
|
CR1616 |
304ss |
|
|
CR1220 |
304ss |
|
|
CR1820 |
304ss |
|
|
CR0927 |
304ss |
|
|
CR1220 |
304SS |
|
|
CR1025 |
304SS |
|
|
CR1016 |
304SS |
|
|
CR3048 |
304SS |
|
|
CR3032 |
304SS |
|
|
CR2477 |
304ss |
|
|
CR2032 Lithium air case |
304ss |
|
|
Coin cell spacer |
15.8*0.2mm |
304ss/316ss |
|
15.8*0.5mm |
304ss/316ss/Pure aluminum |
|
|
15.8*0.8mm |
304ss/316ss |
|
|
15.8*1mm |
304ss/316ss |
|
|
20.2*0.4 |
304ss |
|
|
Wave Spring(Belleville Washers) |
14.5*1.42mm |
304ss/316ss |
|
Coin Cell Conical Spring |
15.4*0.25mm |
304ss/316ss |
|
20*1.7mm |
304ss |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
