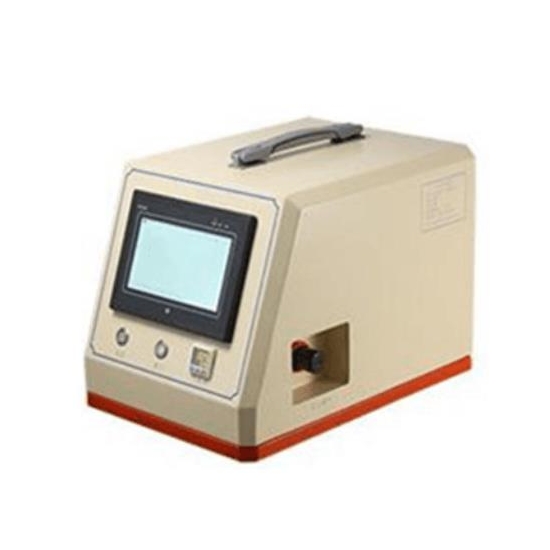

Louis@lithmachine.comAir Tightness Tester Air-leakage Testing Machine For Prismatic Cell
1. This series supports leak test methods such as leak test, positive pressure test and negative pressure test. The range of leak test is - 85kpa ~ 800kpa.
2. The 7-inch touch screen is used as the human-machine interface, which can easily monitor the test results and set various parameters during the leakage test.
3. It has the alarm function of qualified / unqualified products, which can eliminate the possibility of manual misjudgment and false inspection.
4. It can accept the control of external sensor and switch button, and can control the external relay, solenoid valve and other executive components to realize the full automation of test.
5. With test data recording function, it can store 8000 test data for 24 hours
6. Testing units: kPa, PA, MPa, bar.
7. With optional external barcode scanning module, it can automatically read the current product information and upload the test data to the computer through RS485 for saving.
Specifications
|
Color |
Beige |
|
Size |
310*440*330(mm) |
|
Weight |
13kg |
|
Power Supply |
AC 100-240V, 50HZ, |
|
Power |
50W |
|
Test Gas Source |
0.4--0.8Mpa(Clean and Dry） |
|
Test Medium |
Compressed Air/Customer Specified Medium |
|
Working Environment |
0-50℃，≤95% （No Condensation） |
|
Test Port No. |
1/2/4 |
|
Pressure Methods |
Positive, Negative Pressure, Positive and Negative Pressure |
|
Pressure Regulation Mode |
Manual |
|
Regulation Precision of Pressure Adjust |
±0.05%FS |
|
Pressure Repetition Accuracy |
0.1%FS |
|
Pressure Adjustment Range |
-85Kpa--+1600Kpa |
|
Sensor Selection Range |
-85Kpa--+1600Kpa |
|
Sensor Accuracy |
0.1%FS |
|
Touch Screen |
7/10 " Color LCD |
|
Languages |
Chinese, English, Japanese, German, Spanish, Russian (other languages customizable) |
|
Programs' No. |
16/99 groups program |
|
Judgment/Alarm |
Automatic Decision/Sound + Light Alarm Control |
|
I/O Port |

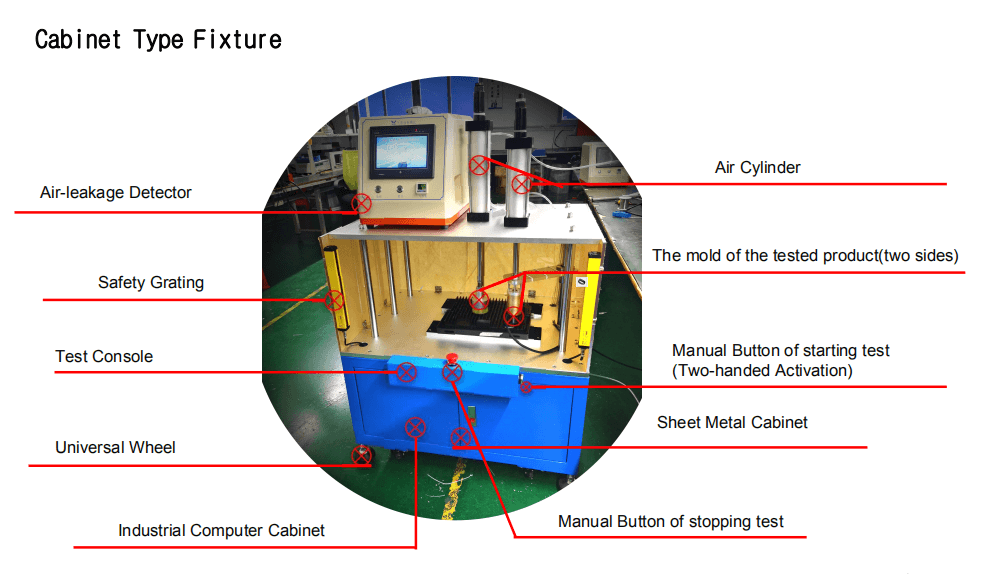

Input/output, 4 relay control functions (safety grating, solenoid valve and red and green warning light can be connected) |
|
Parallel Communication(RS485) |
Input/Output：Test Data, Set Value, Receive External PLC Control Signal |
|
Historical Records |
It can store 100,000 test results and upload them to the computer via usb flash drive. |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
