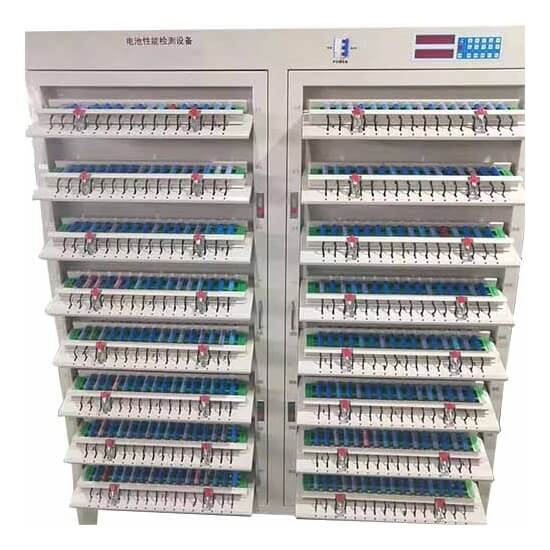

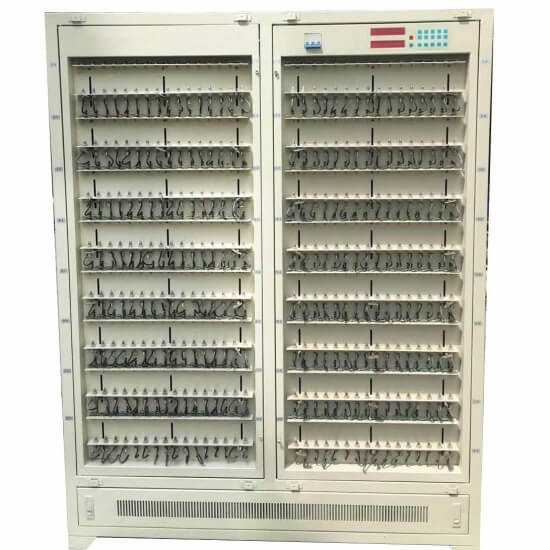

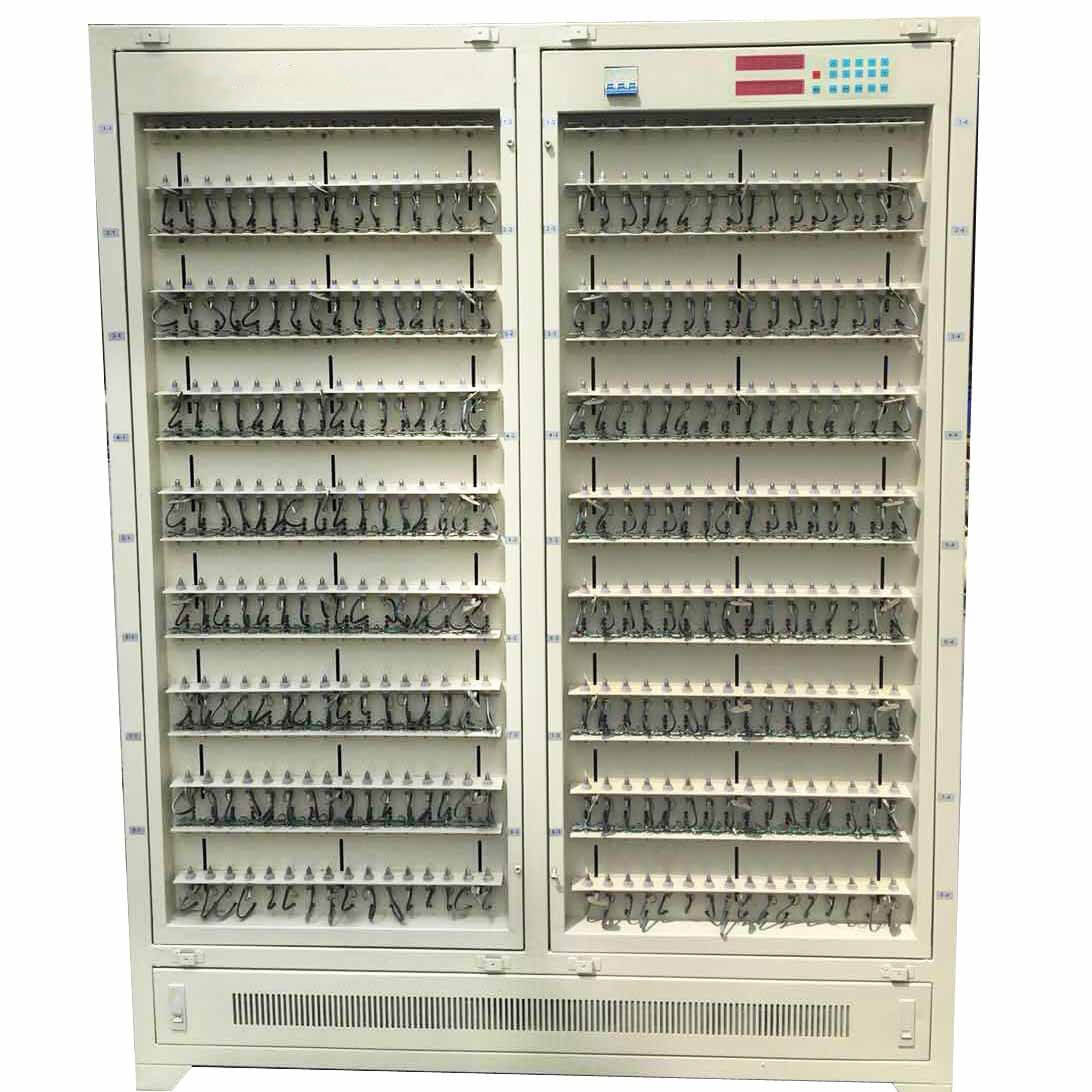

Louis@lithmachine.com5V3A 6A 512 Channel Charge and Discharge Battery Tester Capacity Testing Machine for 18650 Cylindrical Cell
FEATURE
5V6A-512 Battery Testing Equipment is a popular newly developed battery testing system for Li-ion cells, LIPB, Ni-MH cells, Ni-Cd cells.
This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.
This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.
Specofication:
Number of Device Channels
The whole machine has 512 channels in total
Workflow Control Mode
Whole cabinet control
Charging Mode
Constant current and constant voltage
Charging Cut-off Conditions
Voltage, current, time, capacity
Discharge Mode
Constant current
Discharge Cut-off Conditions
Voltage, time and capacity
Sampling Inspection Cycle
≤10s
Voltage Measurement Range
0 ~ 5V,
Resolution 1mV
Battery Voltage Range
Charging: 0 ~ 4.5V,
Discharging: 4.5 ~ 2V
Constant Voltage Range
3~4.5V
Voltage Accuracy
±（0.05%RD+0.1%FS）
Current Range
Charge 0.025-6A,
Discharge 0.025-6A,
Resolution 1mA
Current Accuracy
±（0.1%RD+0.1%FS）
Time Frame
Any setting within 0 ~ 30000 minutes, time unit is min
Time Accuracy
≤±0.1%
Fixture Type
Cylindrical four wire fixture
Fixture Spacing
35mm
Support Battery Height
0~90mm
Working Power Supply
Three phase four wire system, AC380V ± 5%, 50Hz, power consumption ≤ 28KW
Communication Mode
RS485, baud rate 57600
Overall Dimension
1440mm（Width）*500mm（Deep）*1840mm（High）
Work Environment
Temperature: 0-40 ℃, relative temperature ≤ 85%
Full Load Operating Current
he maximum phase line is 30A, and the maximum zero line is 3A
Equipment Starting Current
The closing moment of air switch is about 60A
Machine weight
About 250 kg

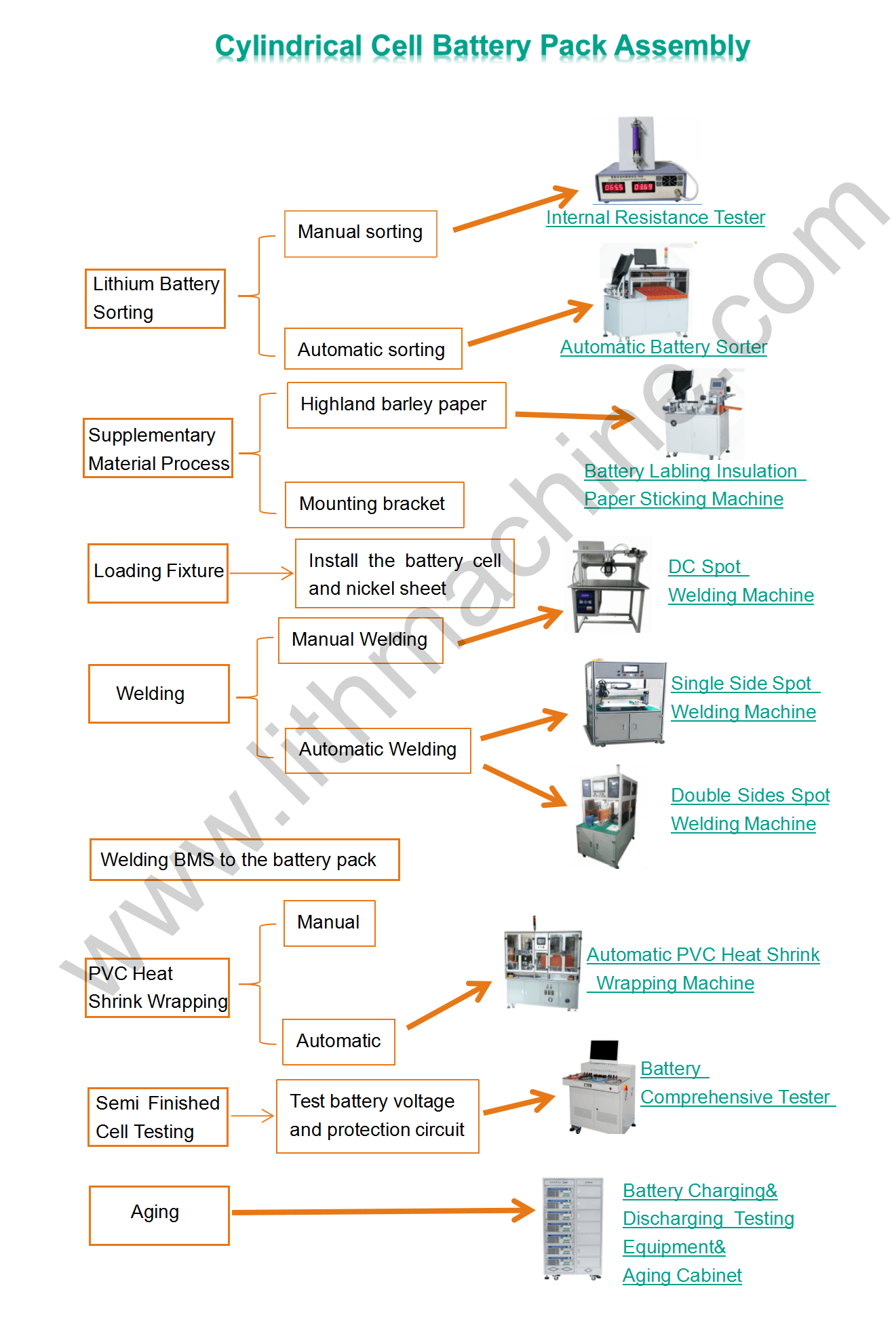

Related Machine
PACKAGE:

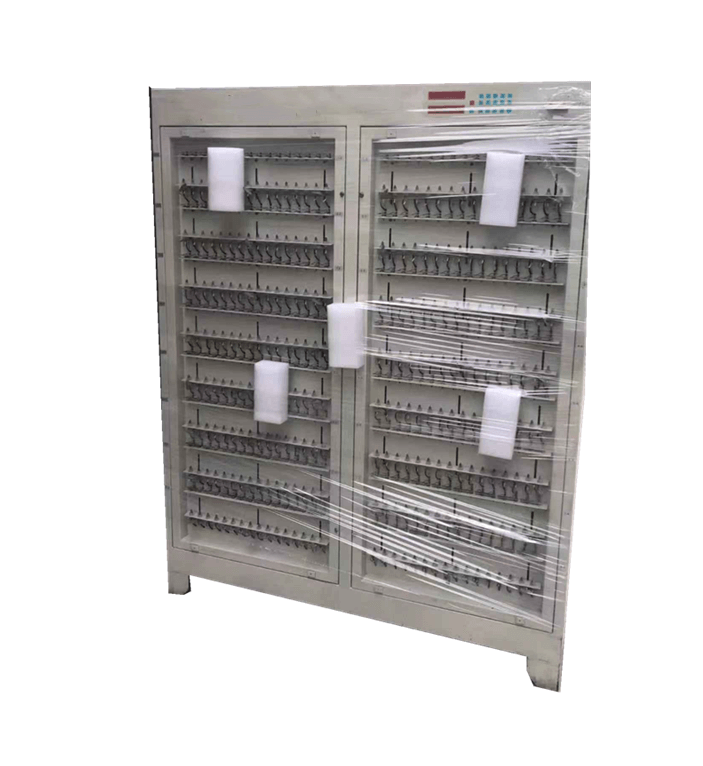

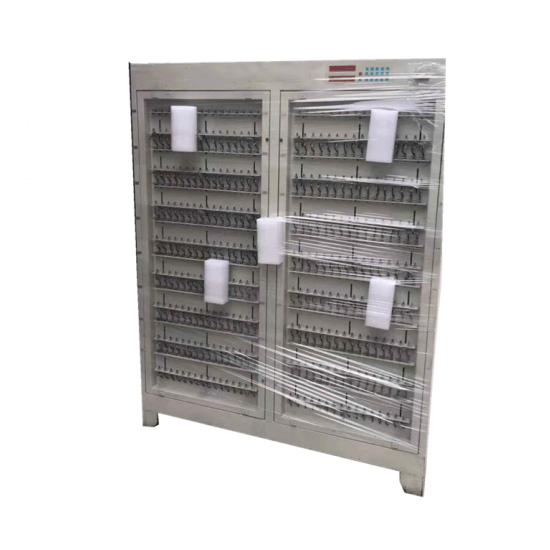

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
