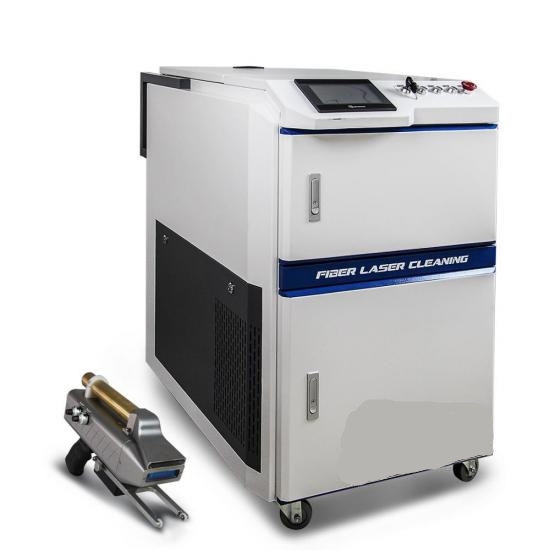

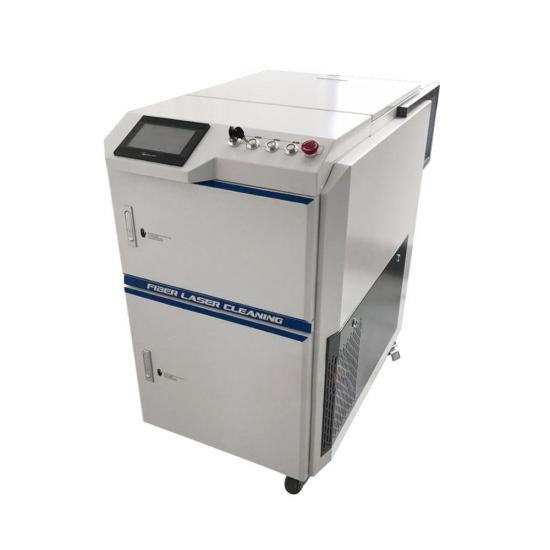

Louis@lithmachine.com200W Hand-Held Pulsed Laser Cleaning Machine With Water Cooling
The process of laser cleaning depends on the characteristics of the optical pulse generated by the laser, and is based on the photophysical reaction caused by the interaction between high- intensity beam, short pulse laser and pollution layer. Its physical principle can be summarized as follows:
1. The beam emitted by the laser is absorbed by the contaminated layer on the surface to be treated.
2. The absorption of large energy forms a rapidly expanding plasma (highly ionized unstable gas) and produces shock waves.
3. The shock wave turns the pollutants into fragments and is removed.
4. The light pulse width must be short enough to avoid heat accumulation that destroys the treated surface.
5. Experiments show that when there are oxides on the metal surface, the plasma occurs on the metal surface.
Equipment characteristics
◎ non contact cleaning will not damage the part matrix.
◎ precise cleaning, which can realize selective cleaning in precise position and size.
◎ no chemical cleaning solution, no consumables, safety and environmental protection.
◎ simple operation, power on, and automatic cleaning can be realized by hand or with manipulator.
◎ high cleaning efficiency and time saving.
◎ the laser cleaning system is stable and almost needs no maintenance.
Technical parameter
|
Cleaning efficiency(m2 / h) |
5 |
|
Cooling mode |
water-cooling |
|
Scan width |
10-150MM |
|
Focal length |
210/160 Replaceable |
|
Power regulation range（%） |
10-100(gradient adjustable) |
|
Power consumption of the whole machine |
2500W（Including chiller） |
|
size |
1100mm×700mm×1150mm |
|
Supply voltage |
single-phase 220V±10%、50/60Hz alternating current |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
